Anyone who has spent any time driving a Land Rover (new or old), knows they are not the quietest of vehicles to drive. Engine and transmission noise is always present. Sound proofing on modern Landies is functional but on the older Series vehicles is practically non existent… (but was offered as an optional extra)

To provide some sound attenuation between the engine bay and the cab, I’ve used Dynamat. My 110 Defender Hard Top also received the same treatment when I bought it and it transformed the driving experience.

Dynamat adds mass to sheet metal panels. For example…. If you’ve ever seen the underside of an old bath or kitchen sink, you will have seen an adhesive sheet (about 20 x 20 cm) under the area where the water hits the surface…. same principal… adding mass to the panel to reduce reverbertion.

IMG_4814

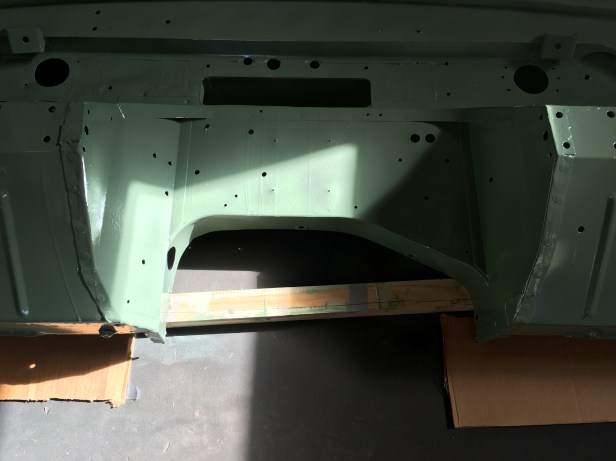

First area to do is the section of bulkhead behind the gearbox bell housing
IMG_4815
Ta Da… Dynamat applied and joints and edges taped for a quality look
IMG_4816

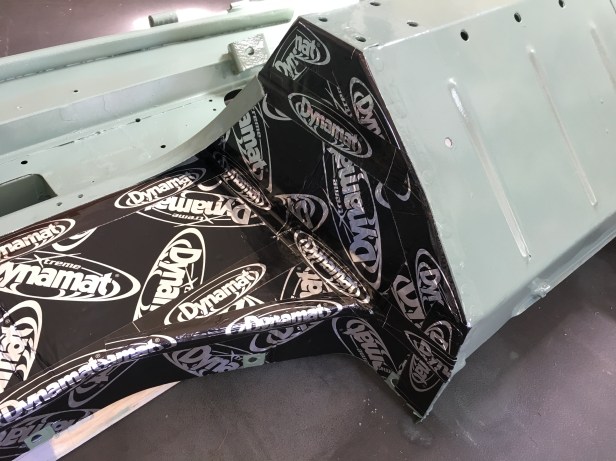

Outside cheeks of the footwells are also treated
IMG_4817

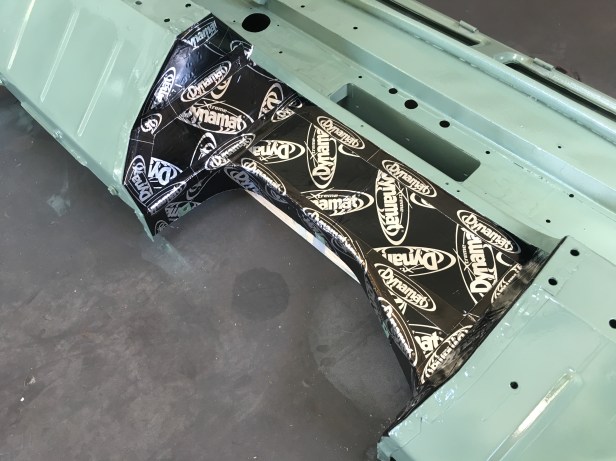

Not a 5 minute job but worth it. The  inside of the transmission tunnel and new floor panels will get the same treatment
IMG_4819

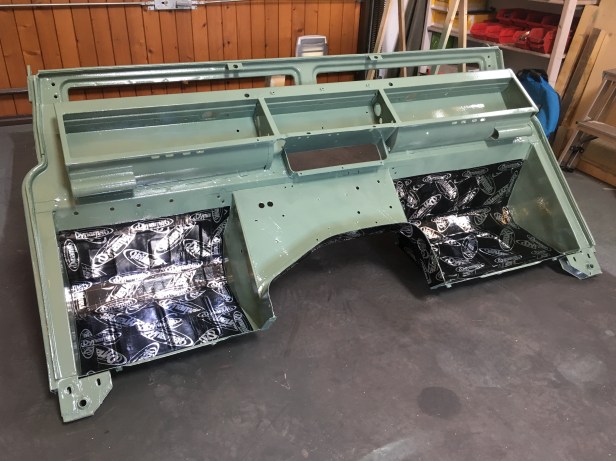

Footwells received the same treatment. Everything South of the instrument panel sound proofed. With the naked design of the upper dashboard, I wouldn’t want to cover it in Dynamat. New floor mats will cover much of the sound insulation in the footwells.
IMG_4820

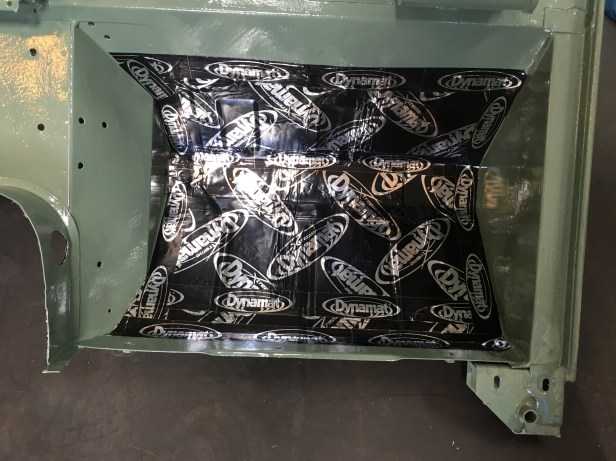

Passenger (co-drivers) footwell. The Dynamat also acts as heat barrier from the engine bay
