Those who have driven an old Land Rover in the dark and wet, will know the woeful lack of lumens at the front end. Halogen lamps help, but they draw a lot of current. This is fine if you have an engine with an alternator. LGL is still running a dynamo (as designed) so I’m keen to reduce load on it a much as possible.

LEDs draw a lot less current and provide a cleaner, brighter, crisper beam. Classic Dynamo & Regulator Conversions provide an LED conversion kit for the old style P45t bulb fixings allowing classic car owners to step (albeit briefly) into the 21st century



IMG_5665
The box…but whats in it?

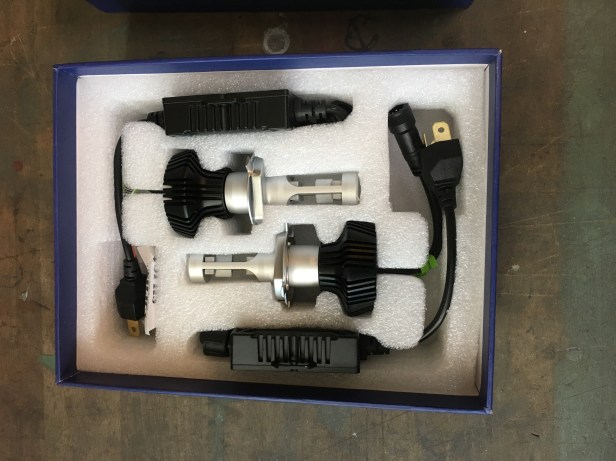

IMG_5666
Hmm… sexy.
IMG_5668
New LED lamp and original filament bulb. (both are dip and beam)

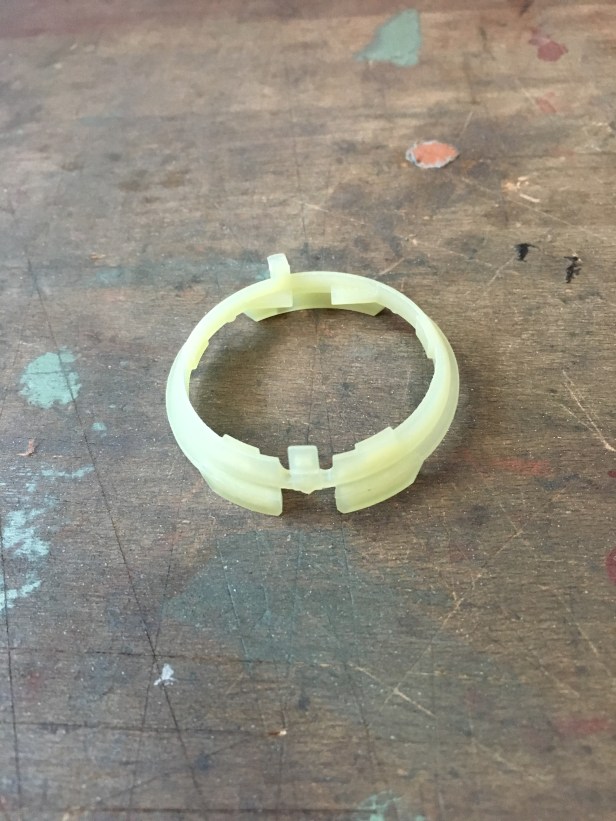

IMG_5669
Conversion ring to mate the modern P43t lamps to old school P45t headlamp bowls
IMG_5670
Heat sink removed and conversion ring in place
IMG_5676
LED lamps employ a regulator. It adds a bit more wiring bat at least the 3 pin plug is a familiar fitment
IMG_5678
Same arrangement on the drivers side. Offering up the regulator.

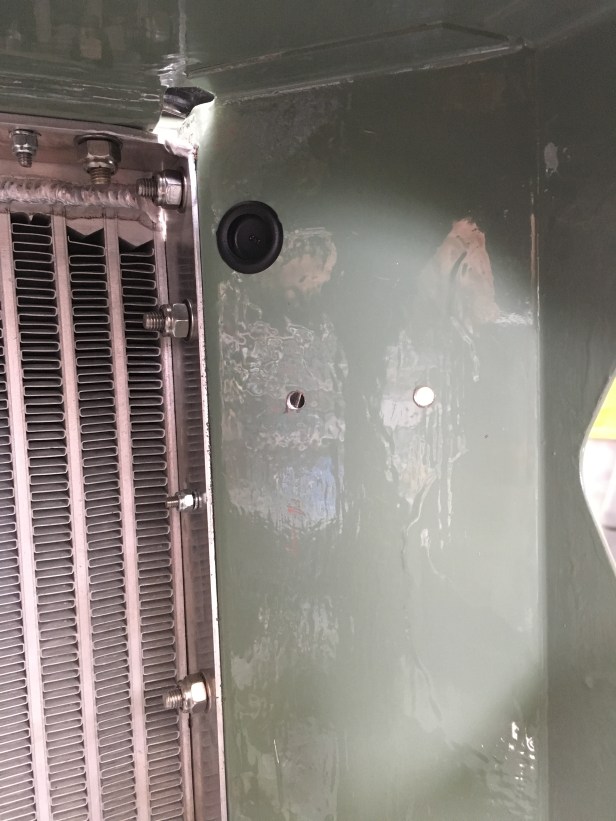

IMG_5679
Two new holes drilled to secure the regulator

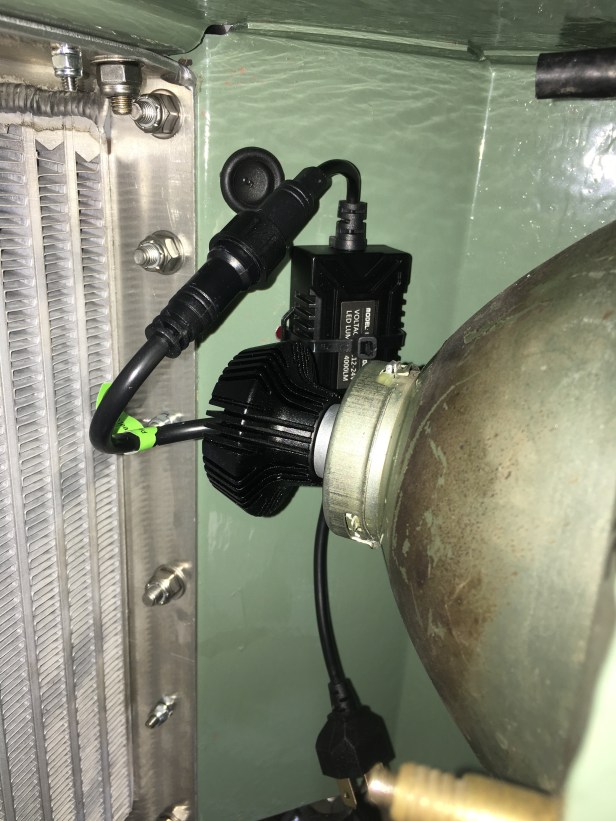

IMG_5681
Regulator fixed in place, heat sink and wiring

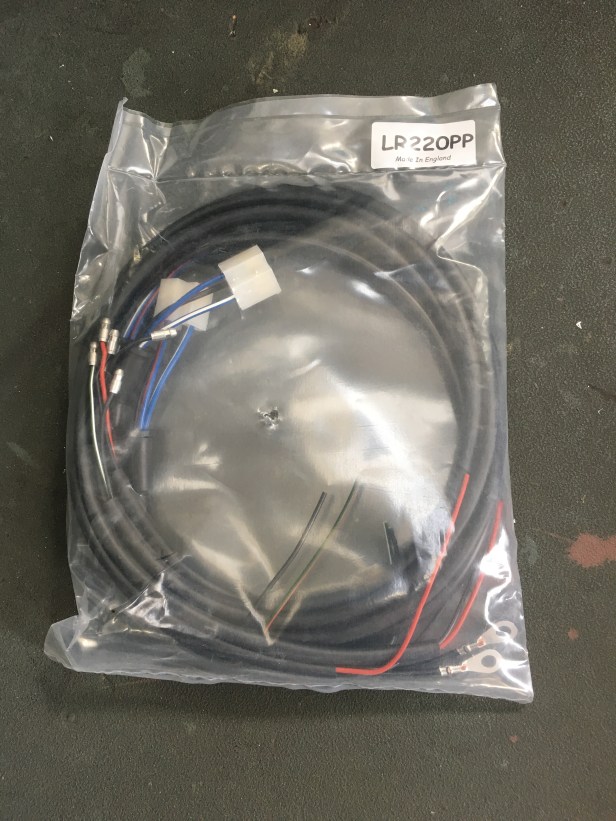

IMG_5682
Next step is to install the wiring kit for the head lamps

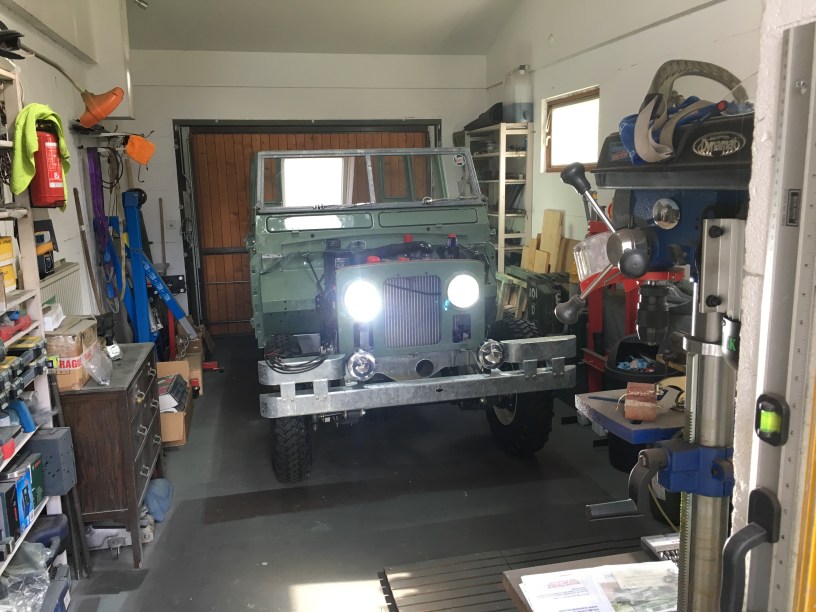

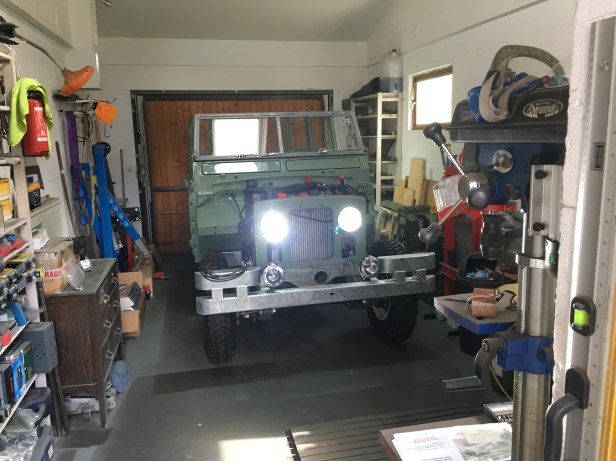

IMG_5684
With the wiring installed the moment of truth…… put a 35 amp fuse into the fuse box. Perform some continuity testing…. and …. they work 🙂 and for those of you who are interested…. that’s 8000 Lumens.
