The long awaited package from Exmoor Trim arrive yesterday, containing the new front seats, door cards, cubby box and rear load bay liner.

Originally LGL had 3 seats across the front but with the additional gear lever for the overdrive and lack of realistic seat belt mounts, the middle seat has been ditched in favour of  a cubby box. Nobody wants to be a passenger in the middle seat from experience… 3 in a row seats do allow for a convenient place for a proper lie down and a snooze… with ones feet out of the window.

The cubby box will provide some additional storage space for the necessities required for motoring in Switzerland and the continent. (first aid kit, hi vis, warning triangle, light bulbs, paperwork, passport, logbook, chewing gum, change for the carwash, random receipts, USB cables, wholly hat, gloves, assorted screws, bolts, fuses etc…)

The front seats and door cards are finished in a close replica of the original elephant hide vinyl. They match the rest of the original interior trim panels every well. It’s important for such things to match… right?

Front Seats…

IMG_7322
New seat backs fitted. The tatty old drivers seat base and back have been removed. Such was my enthusiasm I didn’t take pictures prior to starting out.



IMG_7332
The seat backs come in two flavours. Bolt or split pin. LGL has split pin seat backs. The brass washers didn’t fit vey well and had to be drilled out to fit correctly.



IMG_7323
Drivers side installed



IMG_7324
Passenger side installed

Cubby Box…

IMG_7325
The cubby box sits centrally on the removable panel



IMG_7326

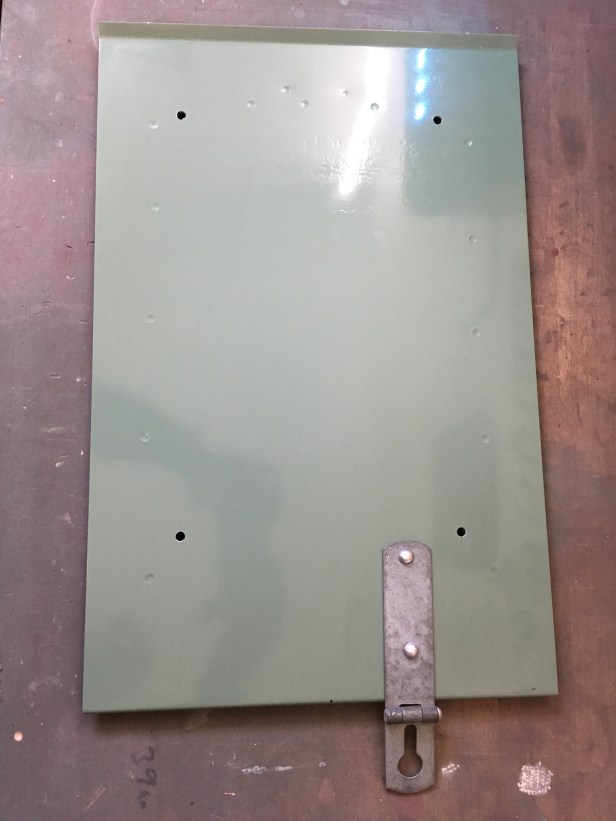

The 4 holes measured up and drilled



Fixing kit and spacers



IMG_7328

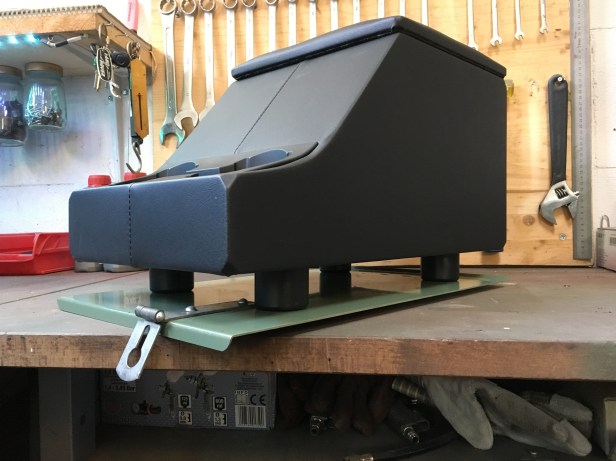

Everything bolted up to the removable panel



IMG_7331

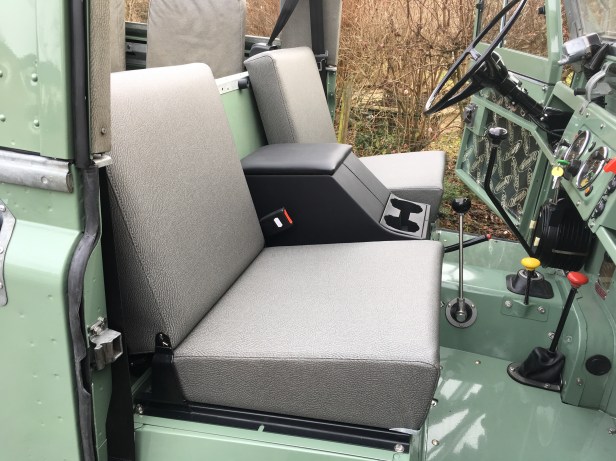

New seats and cubby box in place

Door cards…

IMG_7333
A sight I hope everyone is familiar with waiting for the new door cards



IMG_7337
The entire “card” comes in 3 parts



IMG_7339
Base and arm rest fitted. Each section is drilled and fitted to the steel frame of the door with stainless self tapper screws.



IMG_7340

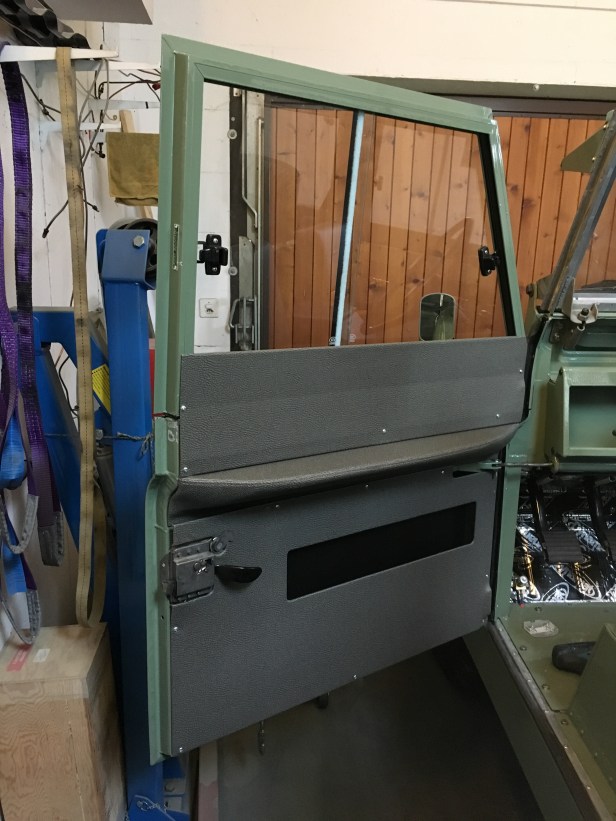

Upper section fitted



IMG_7341
Drivers side cockpit. Quite cosy in there.



IMG_7343
Repeat with the passenger side door

Rear Load Bay Liner…

I have the same product in the back of the Defender. It has an element of sound attenuation it’s extremely hard wearing and reasonably comfortable to sit on… even for winter camping.

IMG_7344
Dynamat…



IMG_7345
The matting needs to be trimmed around the seatbelt mounts



IMG_7346

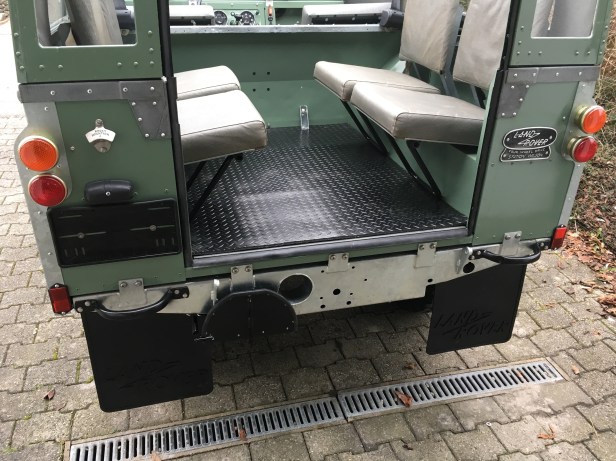

Much smarter in the back now 🙂



IMG_7347

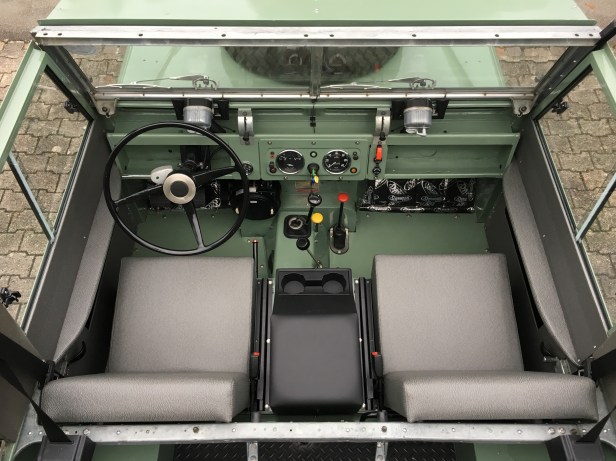

Drivers and passengers seating and door trims installed



IMG_7350
Cockpit 2017. I have some new rubber mats to fit but they can wait until everything is finished



img_0073
Original seats



…FIT THE ROOF ANDY…

Hmm… we’ll see…
