The new input shaft and primary pinion had been languishing with the local post office for a week but its now installed where it should be. The new intermediate gear for the transfer box arrived from the same supplier on Cyprus…. also a Genuine new old stock part.



img_2138
Now, I know it looks like its been dredged out of the Thames but this sludge is applied at manufacture to protect the parts. After 50 years or so it’ still doing a good job.
img_2140

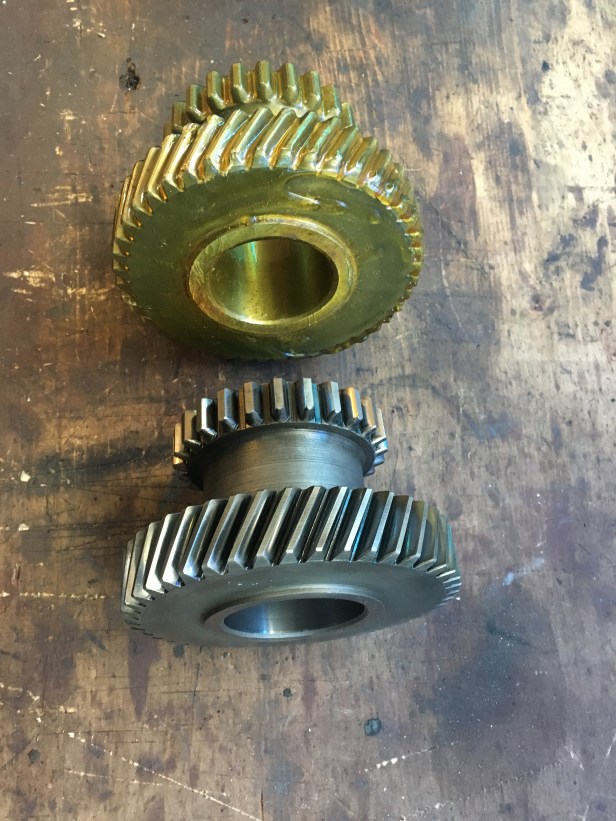

For comparison, the new intermediate gear in its wax coating (top) Vs the old one
img_2141

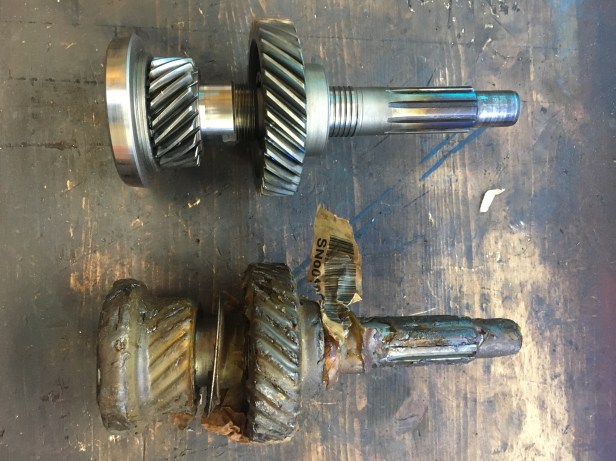

Old primary pinion assy above. New one read to be “born”
img_2142

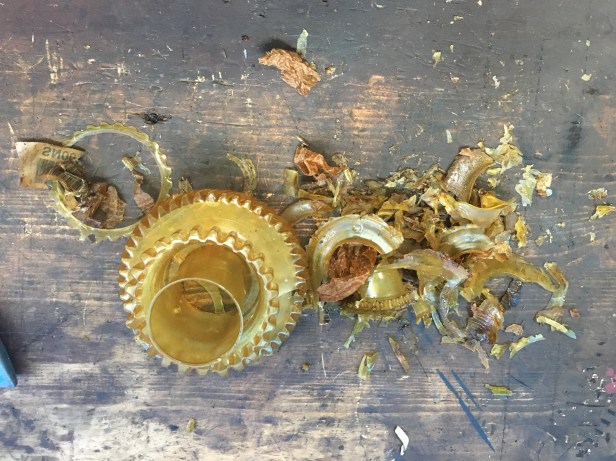

It was quite a messy task
fullsizeoutput_1cf
The rest was soaked off in boiling water far a while
img_2144

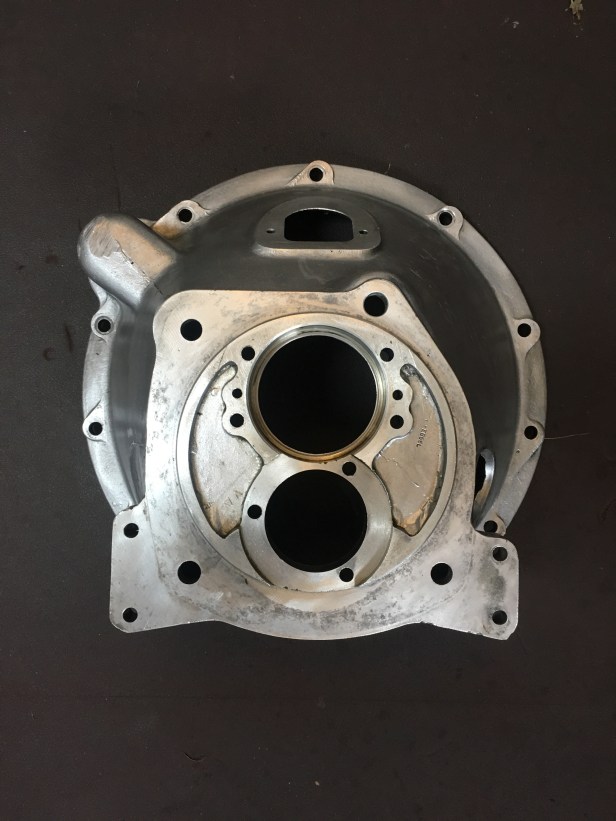

Naked case read to have things inserted. Input shaft fits in the top opening and the layshaft bearing fits in the lower
img_2148

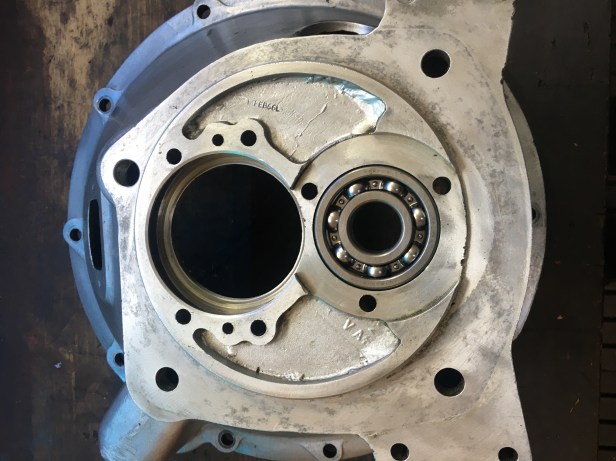

Layshaft bearing drifted in (I can’t wait for my new press to arrive)
img_2151

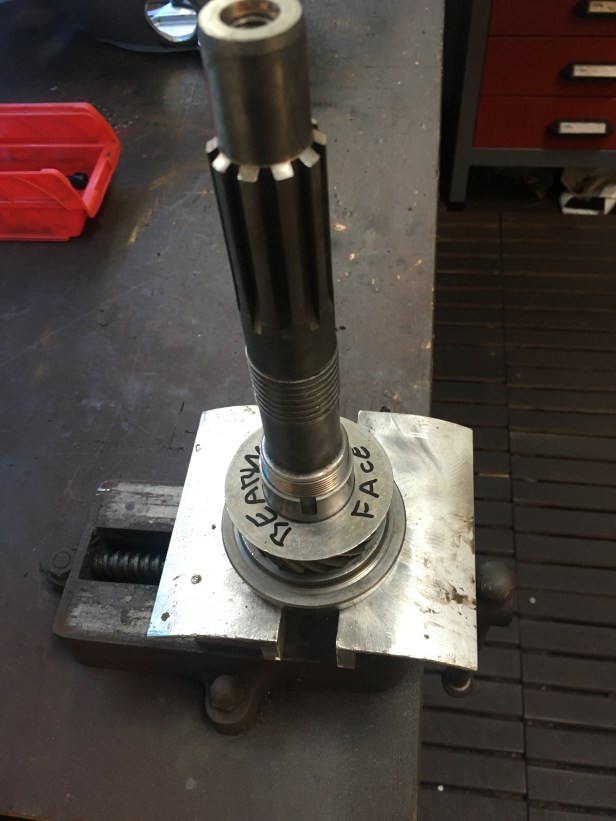

Cleaned input shaft with the dished washer in place. The dish in the washer is very slight hence the reminder…
img_2152

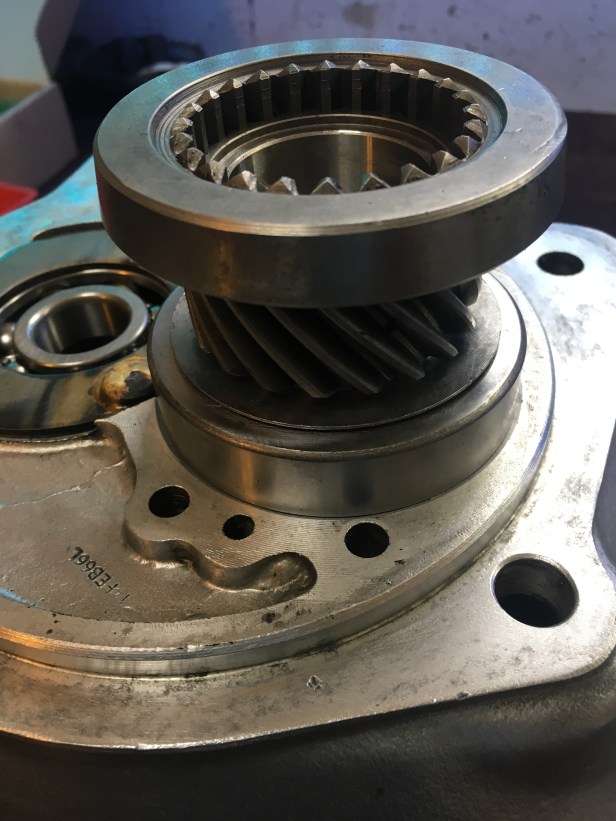

With the bearing drifted partially onto the input shaft, I used the lock nut fixed in the vice and rotated the shaft to drive the bearing rest of the way.



img_2156
Pinion bearing offered up to the back of the bell housing. The housing was heated “gently” which made the bearing slip in nicely
img_2158

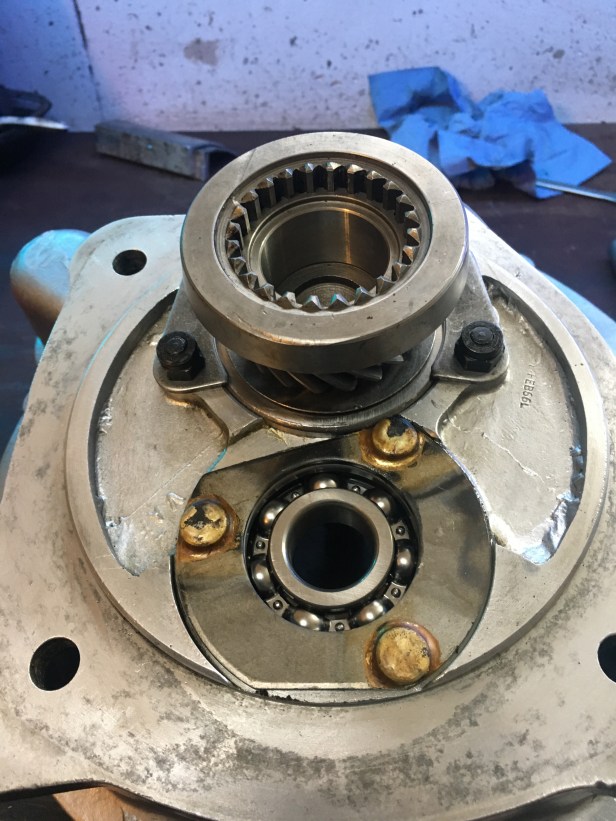

Both bearing retainers in place
img_2157
Inside of the bell housing, ready for the clutch release mechanism
img_2159
A bead of Loctite gasket sealant was added to the inside face….
img_2160

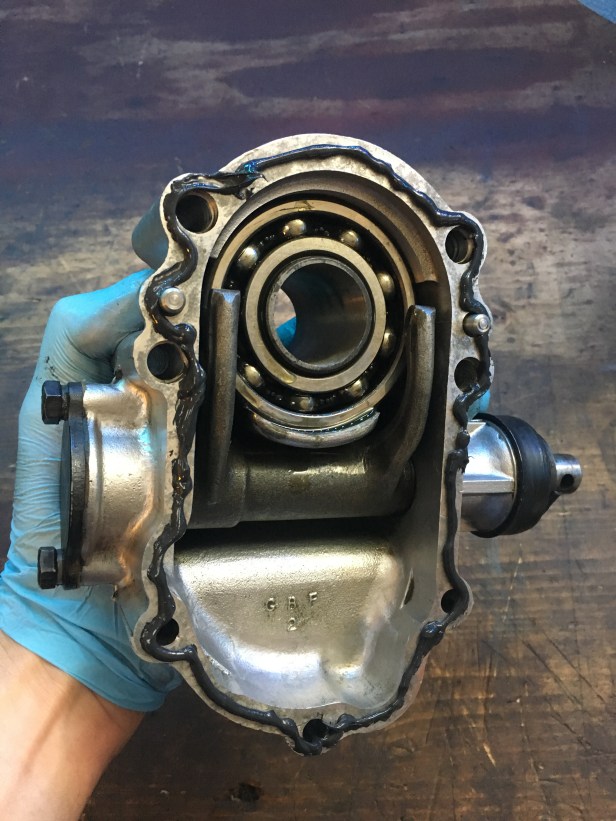

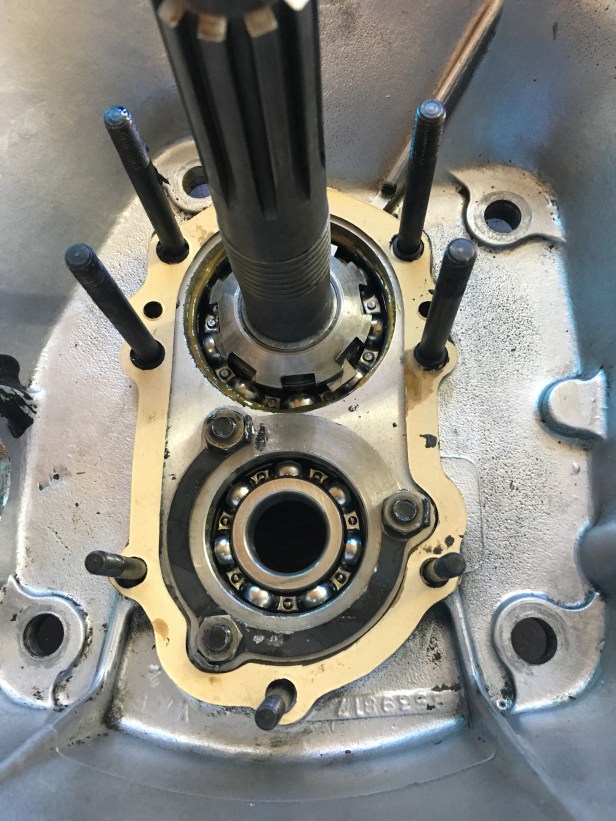

… then the paper gasket added….
img_2161
… and same on the inside face of the clutch release mechanism
img_2162

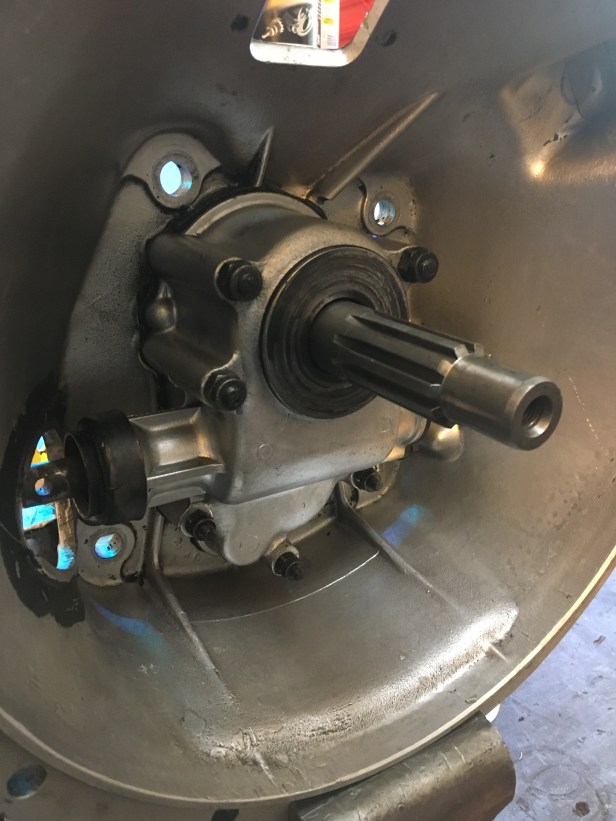

Release mechanism installed and tightened down. Once the gasket sealant has gone iff, I’ll trim the excess off.
