The weeks in between the gearbox rebuild and the chassis and engine arriving, meant some of the engine ancillaries were refurbished. These can now be fitted back to the new engine.

img_2360
1: Oil filler tube bolts on here
img_2361
I did take some additional picture of this little job with the gaskets and catch plate being fitted…. but no longer to be found.
img_2362
2: Oil filter housing
img_2363
Loctite sealant
img_2364
New paper gasket
img_2366
Housing body in place. Another bead of sealant was added to the outer face of the gasket.
img_2367

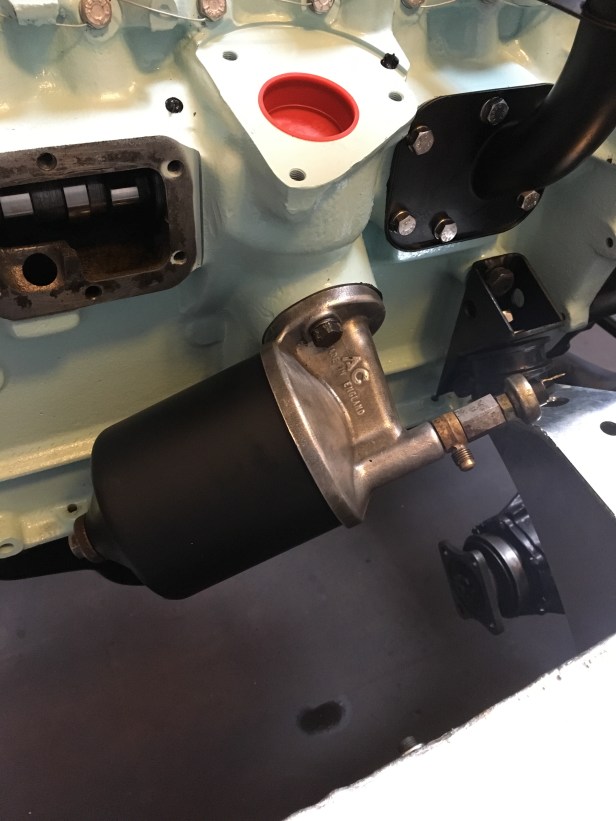

Oli filter “can” bolted in place. The paper filter element has yet to be fitted
img_2369
3: Lift pump cover plate
img_2370

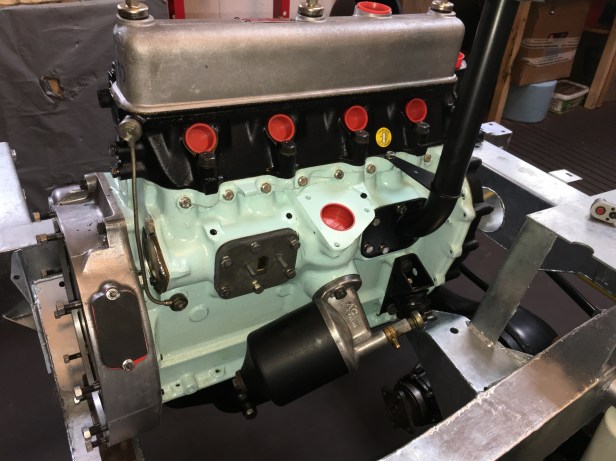

Similar arrangement of sealant first, then gasket, more sealant, then the cover plate
img_2372
4: Water pump
img_2375

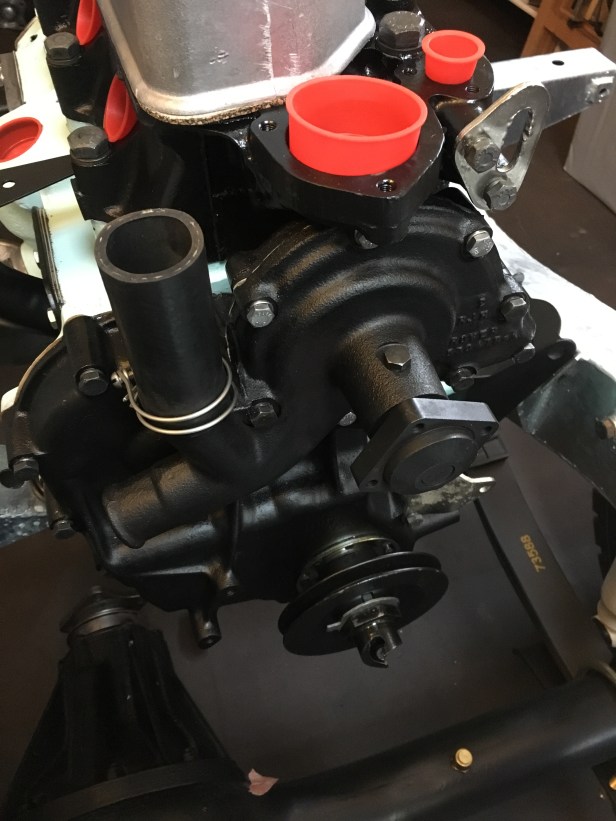

Water pump in place with new bypass hose and correct style wire clips. These look a lot smarter than the Jubilee clips
img_2376
5: Thermostat housing bolted in place with all nww gasket and bypass hose fixed down
img_2380
6: Starter Motor
img_2381
Original studs locked in place with some Loctite thread lock
img_2382

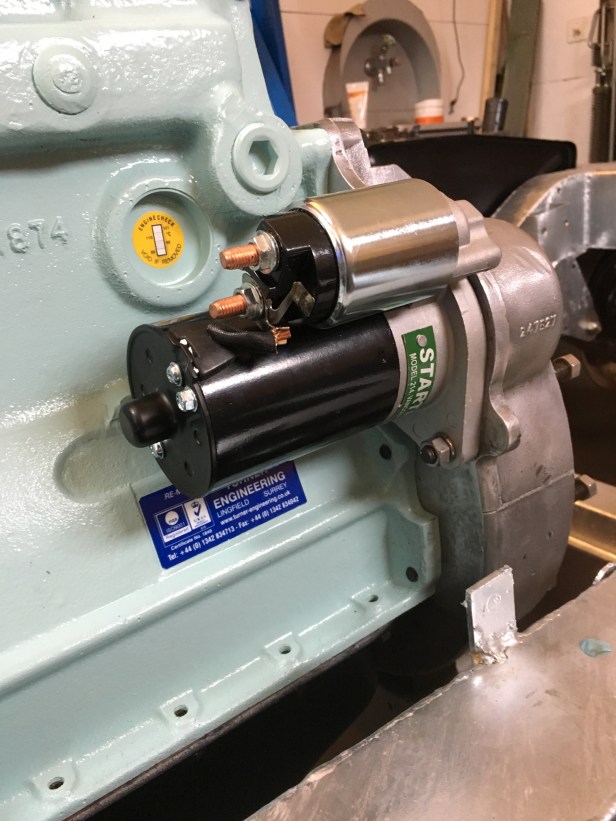

New high output started motor from Rocky Mountain Spares, Canada
img_2385

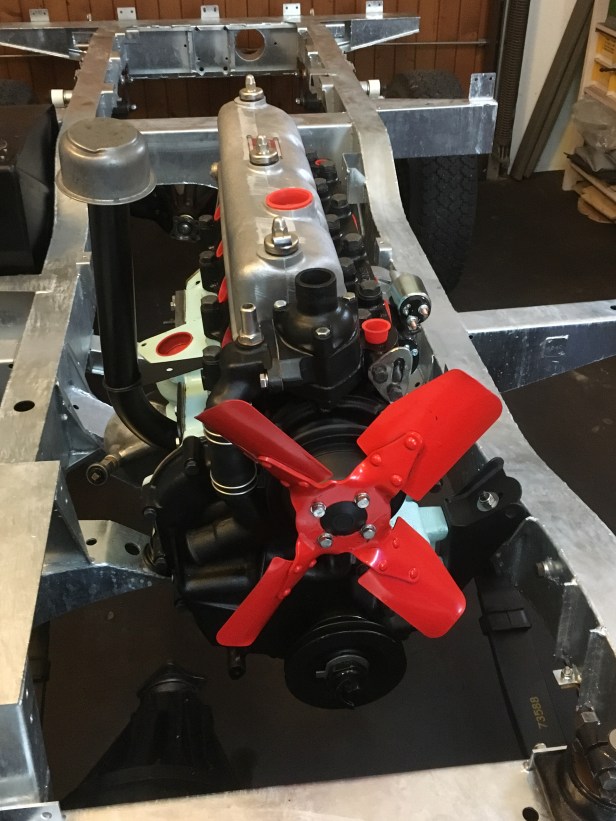

7: Water pump pulley and cooling fan fitted
