The sunshade (part number 90608551) is a great device for keeping sun and rain off the wind screen. I had this one on a Series 3 and it worked very well. As they are few and far between, I kept it when the Series 3 was sold.

Fitting the sunshade gave me the opportunity to try out my new riv nut tool. A riv nut is a threaded insert that allows a strong mechanical fix in a location where tapping a thread is not practical. It performs similar to a pop rivet and is basically a compression fit. You insert the riv nut, “squash it” with the tool and it leaves you with a threaded insert to screw a fixing into. If you’ve ever installed a bottle cage on a steel  or aluminium bicycle frame…. the threaded hole into which you screw the bottle cage fixing is a riveting nut.

IMG_5737
After some careful measuring…. holes were drilled and the inserts put in place
IMG_5738
Ready for squashing
IMG_5739
Both inserts “squashed” into the original windscreen frame
IMG_5740

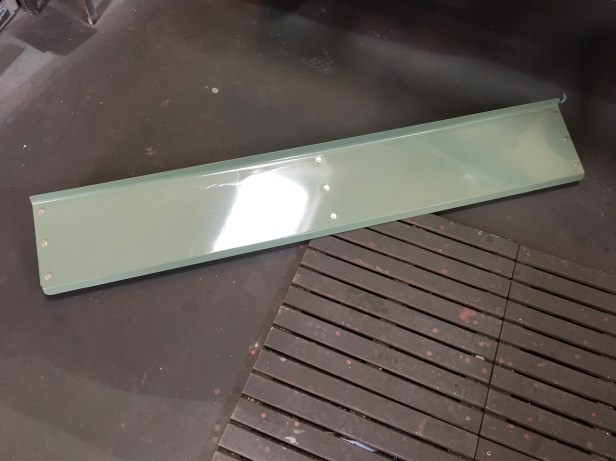

Sun shade painted to match the body colour
IMG_5742
Same on the drivers side
IMG_5743

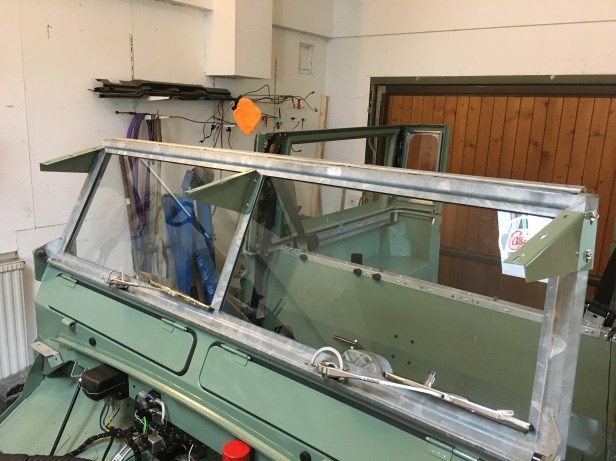

Theres also a bracket on the centre post of the windscreen to keep things stable at “high speed” 😉
IMG_5744

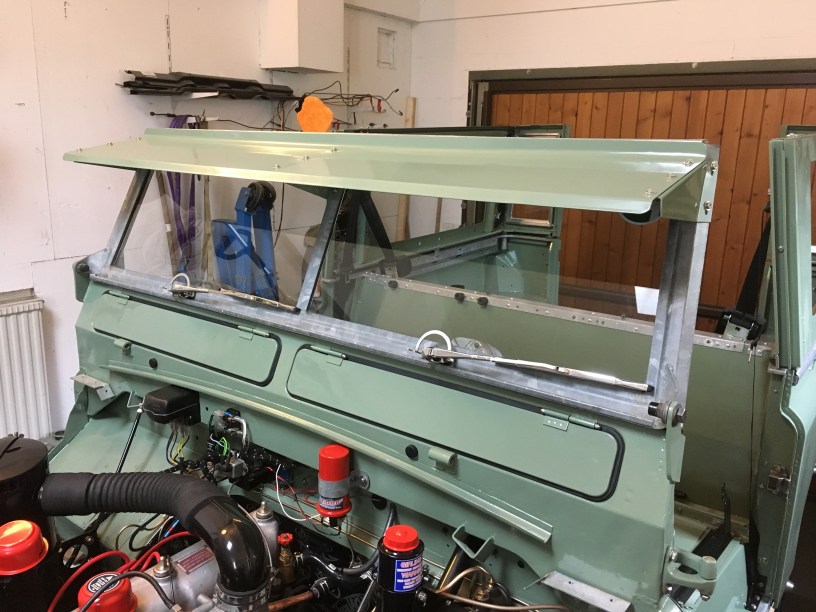

Everything aligned (almost) perfectly. I’ve since replaced the passivated nuts and bolts and bolts with stainless fixings
IMG_5745
View for the inside. These really do make a difference and aid keeping rain, snow and sun off the windscreen.
