… A slightly retrogressive step… taking the roof off. The weather is improving, spring is on its way (or at least it isn’t going to snow again down here) and thoughts are turning to actually getting the Landy on the road.

To do this, the roof needs to come off to get the vehicle out of the diminutive garage door.

In a fit of brilliance whilst lying awake in the early hours of this morning I thought about fitting original Land Rover leaf springs and be done with it.

This would perhaps lower the ride height sufficiently to fit through the door… If not, I’ve wasted a lot of time fitting  new springs and would never feel the benefit of the funky Canadian parabolics.

So, the rear door and roof have to come off and nearer Easter, will be re-fitted whilst on the driveway. Hopefully there won’t be any significant mechanical problems after this point as I don’t fancy doing them on the drive… and I’m not entirely sure if I’m actually allowed to do them on the drive.

A familiar view


Spare wheel and rear door removed

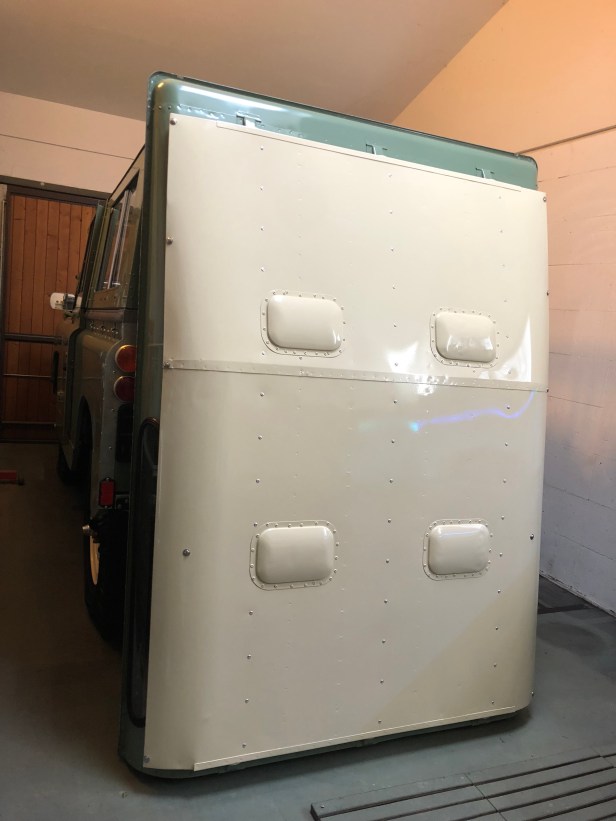

30 minutes later the roof is back on the ground. In this direction  it only takes one person to get the roof off. Some of the stainless steel fixings seized as they were undone and brute force was required to shear the shank off the bolt. Why ? More on that below…


… and after the tidy up in the garage I’ve doing for the last couple of days, I have space to keep the roof indoors.


Cold Welding / Galling

Now…. I had to look this up… but I have at least something this afternoon.

For as along as I can remember, undoing stainless nuts and bolts often resulted in the nut seizing on the thread of the bolt. It was more common with nyloc nuts.

The only way to release the pair was to force them until the shaft of the bolt shears or cut them off. Smaller diameter bolts can be sheared by hand, larger bolts would have to cut with the grinder or hacksaw… unless you’re Popeye. Not ideal in a confined space.

This seizure is called cold welding or galling. Cold welding occurs during installation / extraction when pressure and friction cause the bolt threads to seize to the threads of the nut. It occurs typically in stainless, titanium, aluminium… in-fact anything except hardened and or galvanised nuts and bolts.

When exposed to air and moisture, stainless steel (and any other metal) will form a very thin film of oxide (rust) on the surface. This offers some protection against cold welding as it reduces friction.

However, if a nut is driven down the thread very quickly (with a power tool), or a nyloc nut is used, heat and friction quickly build up, the oxide removed and the relatively soft materials mechanically bond together.

At a microscopic level, the surface of the threads have small ridges on them. In normal conditions, this presents no problem and nuts will happily wind down threads. If heat and friction are introduced, the tops of these ridges will shear off, creating more friction and heat. The cycle continues with more shearing and locking until the threads are destroyed and the fastener will no longer turn in either direction.

The process is compounded by the depth and pitch of the thread. Fine threads are more susceptible to cold welding than course threads… and I’m using stainless steel BSF nuts and bolts… British Standard Fine. Enough said.

In future I will use a dab of copper slip on the threads.

Of the 25 or so fixings holding the roof on, 6 galled.

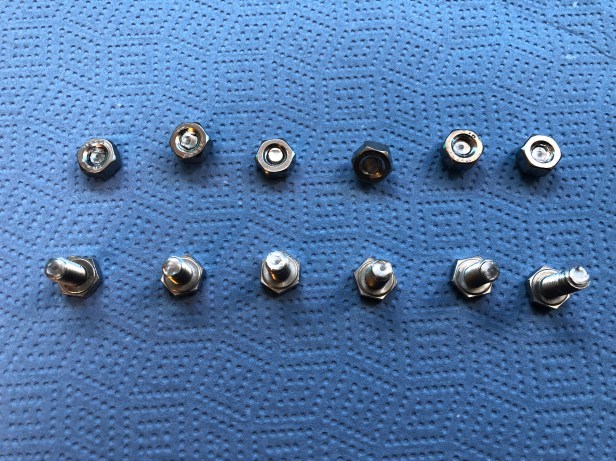

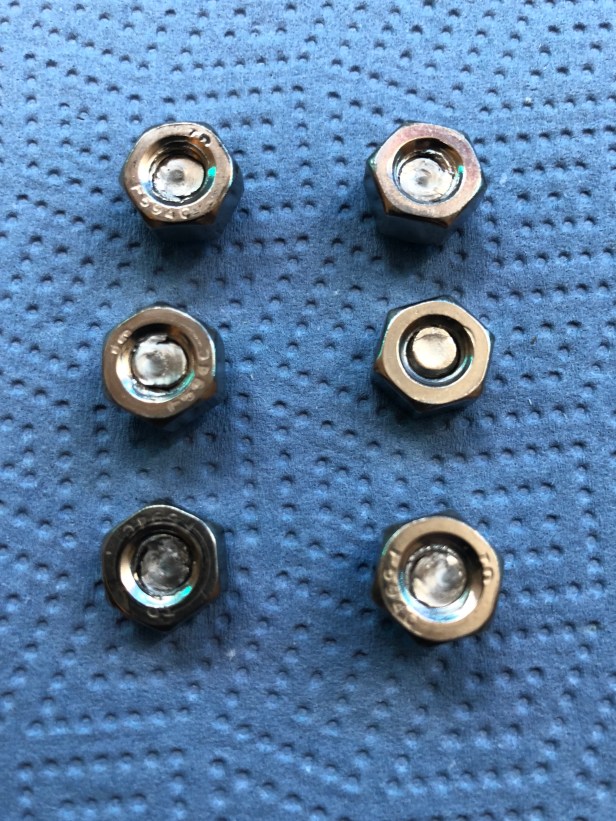

Thread seized in the nuts and sheared off


What’s left of the bolts after the nut have been sheared off

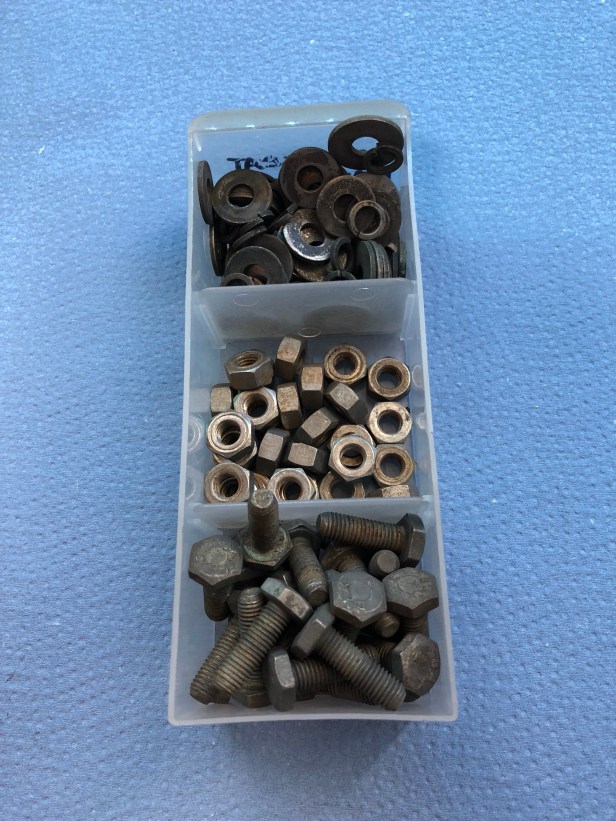

But fortunately… I kept the original steel roof bolts 🙂
