With a long (and undoubtedly hot) trip planned to the 2019 Les Séries en Helvétie next weekend, I thought it time to change the gear box oils. The change is ahead of the workshop manuals recommendation by a long way but as the gearbox has all new internal parts, a lot of bedding in will still have occurred since the first change at 370km. This is likely to mean there’s a soup of phosphor bronze and steel particles in the oil reducing its effectiveness… which there was.

It was also an opportunity to do some regular checks:

  • Grease the prop-shafts
  • Engine oil levels
  • Brake / clutch fluid levels
  • Brake drum alignment
  • Lights, indicators operable
  • Tyre pressure

Transfer Gearbox

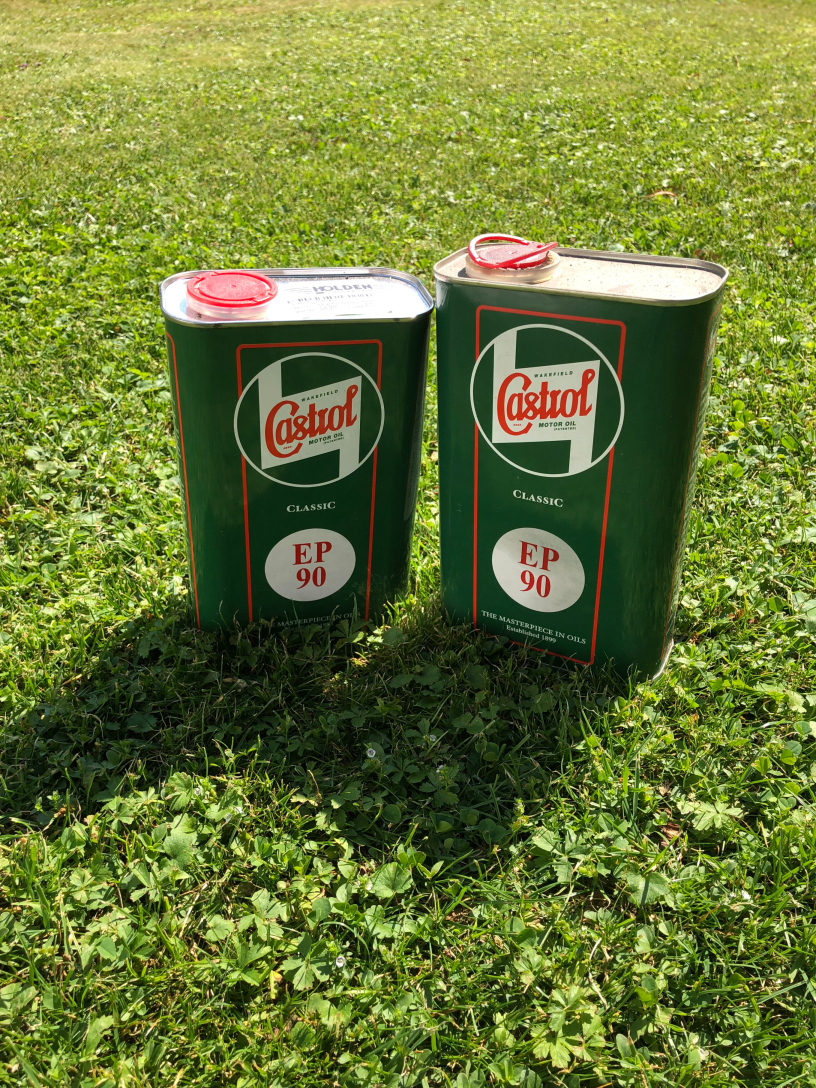

2.5 litres EP90

vooAoD2hSEypIMSxgt2nAw

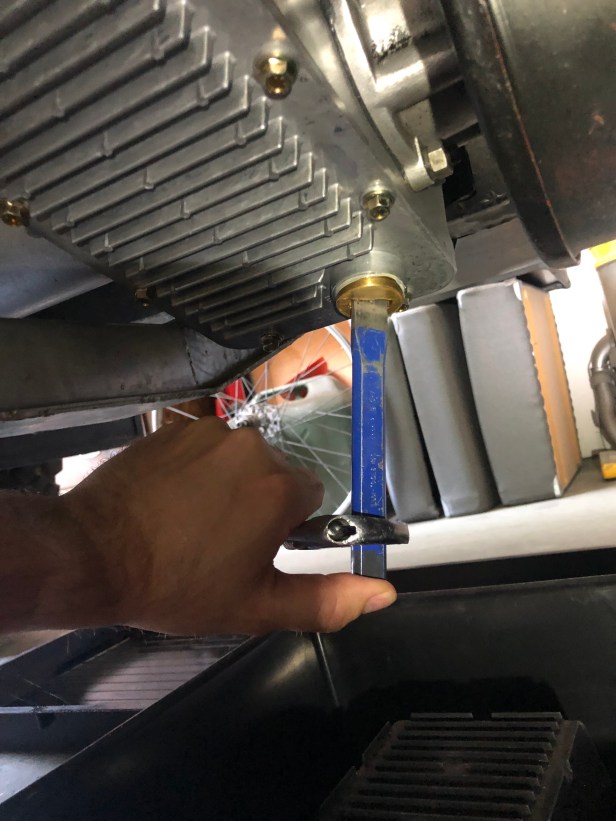

Remove the drain plug in the transfer box cooler. A cold chisel works well for this. If someone knows of a correct tool, please drop me a line.



pVHumSrOaFLHZwbNuuA
Oil is very clean in the transfer box. There are far fewer gear changes occurring in there and hardly any phosphor bronze parts.



IPXtQZ03RZuqn9Ypj%oB9g
The drain plug is cleaned and some new PTFE tape applied to the thread.



kNJUy6X%RnufEkXOr15PmQ
Apply it in a left hand direction



A9XHhG9MQOK37feGYr0ybA
Ready to be refitted. Next time I will order a new crush washer.



YxZoJctVQ2GmxzV08hI%5w
Hey presto… refitted.



3ryAr2ezQcOb491djzZ1DQ
Next up, is refilling the transfer box with EP90. The handy cover plate comes with a neat filler plug.



5ZEqx+AQT0+44ol0oY%BjQ
Insert a funnel and pour in 2.5 litres of shiny new EP90



e8+MQUsWRM2cE4nJnjUeKQ

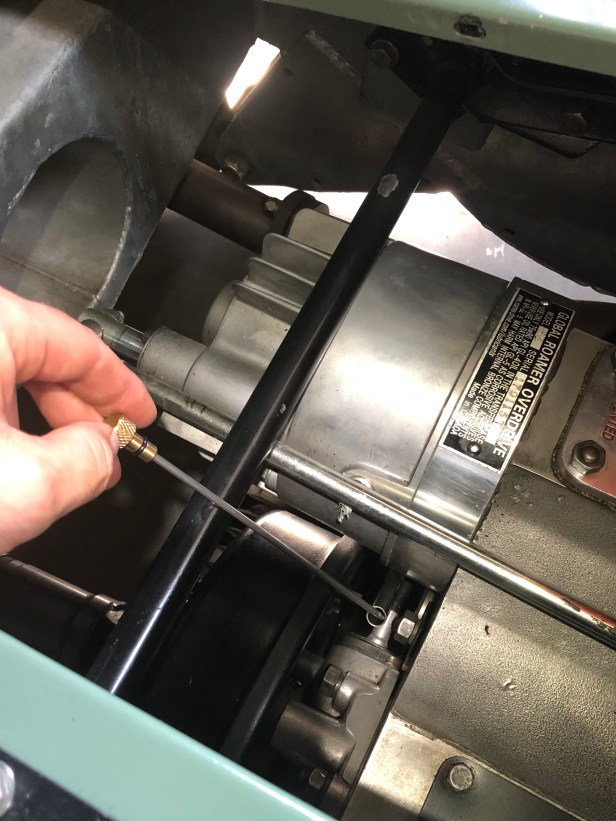

The overdrive shares the oil with the transfer case, and there’s no need to add in any additional oil. Rocky Mountain also make a dip stick for the transfer case which makes it super easy to check the level. As a rule, the bottom of the filler plug opening is the max oil level… when oil runs out of the filler plug opening, the gearbox is full.

Main Gearbox

1.5 litres EP90

sRX2M6a9Qe+gBVC9UZ3bJA

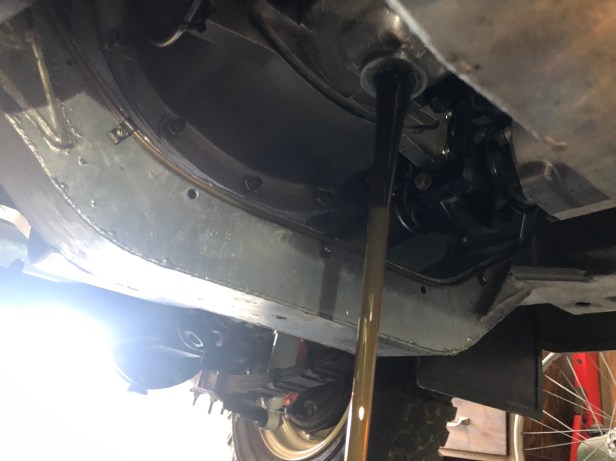

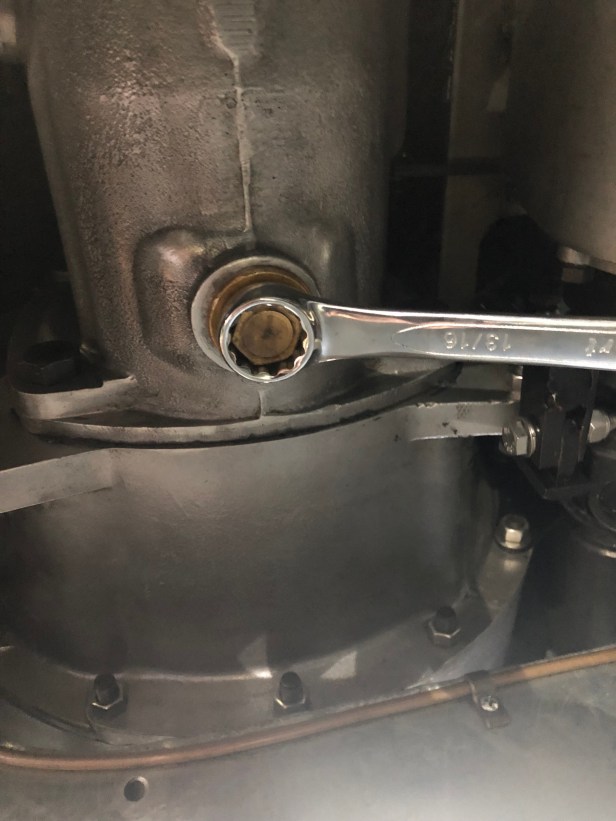

Similar process for the main gearbox… remove the drain plug.



8ZIh0sbxQZaJttB3hzFaGg
Notice the oil is much dirtier



z9AJ6TktTAu32pM5dTFaCQ
Drain plug if wrapped in PTFE again



XuZyFMVfQS2j%KtGrgLd2Q
…and refitted.



jAzYiek7SlCMYt6mhZntjQ

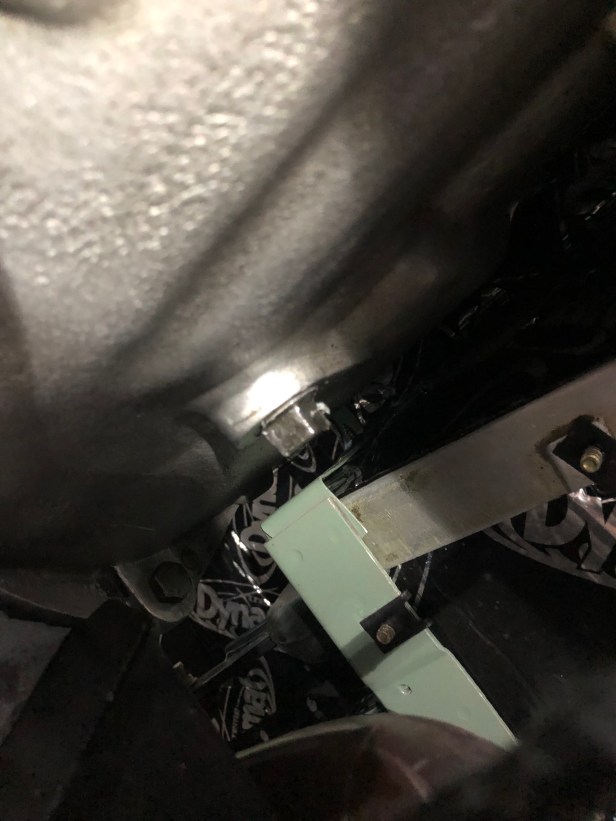

Next the filler plug on the side of the gearbox case is removed



Aa6FANkCTnSUAkK9RySZ9w

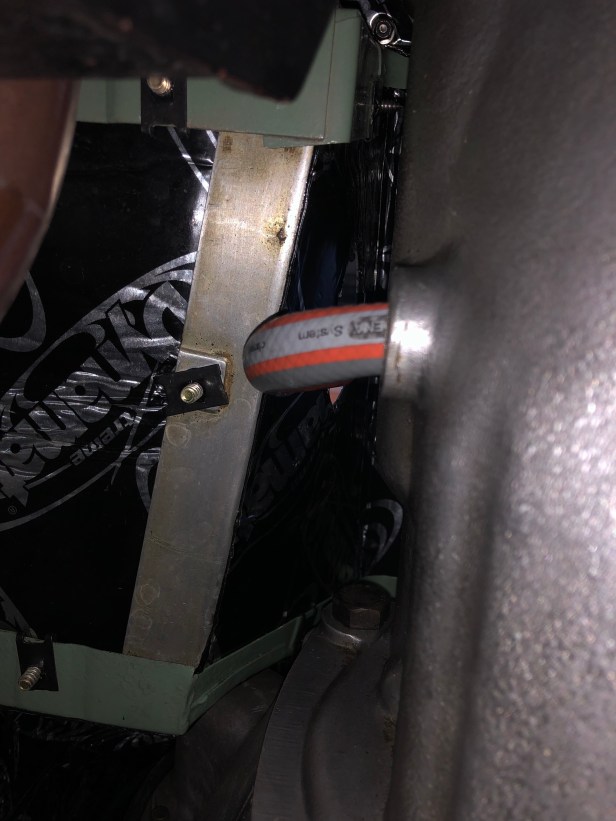

I bought a special syringe for doing this last time but it made such a terrible mess, it went straight in the bin… This is my own invention… one end of a length of garden hose is inserted in the filler opening



azN8JkIwS3WIfu8zCaWv6g
The other end has a funnel. Simple and hardly any mess.



JpVtbOY3Rr2KN7hpowhqWA

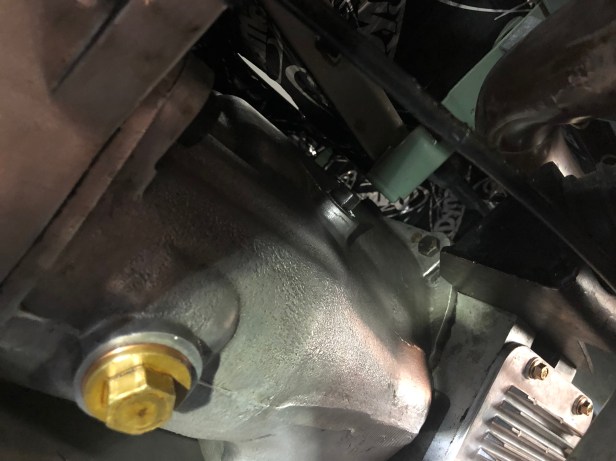

Filler plug refitted and the few drips cleaned up

Greasing the propshafts

Buzzweld CCI Lithium Grease

For the uninitiated each prop shaft (of which there are 2… front and rear) have 3 grease nipples each. 2 on the universal joints (UJs) and one on the sliding shaft.

Periodically new grease needs to be injected into these areas. Doing so forces the old grease out… leaving a terrible mess!

W3SKEPRtSDWVMUYpd2H70g

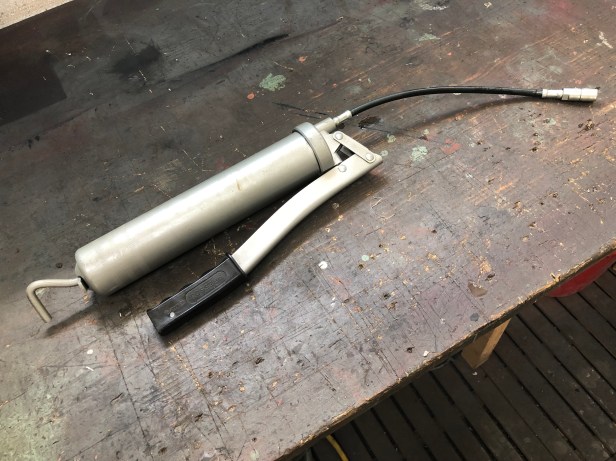

Grease gun



p8UYWcqQQ865O2s1cYbUEA
2 of the 3 nipples (the shiny parts) on the rear prop shaft. Note the “pins” in the centre of each nipple…



G9fZKA9STr+ndz9tBNbMHA
The end of the hose on the grease gun is pushed onto the nipple. When the handle is pumped, enough pressure is created to overcome the “stiction” in the pin of the nipple and the grease is forced in.



The above has covered the major parts of todays exercise. All other fluids setting and pressures were OK. In-fact the engine oil is still as translucent as it was when I put it in there in 1100 Kms ago. A testimony to the quality of Turner Engineerings workmanship.
