Petrol engines of a certain age, have an vacuum advance on the distributor (the device creating & distributing the spark) but to understand what this actually does we need to discuss engine timing…. briefly, I promise.

The spark that ignites the fuel air mixture does so at a given point during the compression stroke of the piston. This is measured in degrees below top dead centre (BTDC)… why degrees? Because engine  timing is measured from the perspective of the crank, which is rotating… hence measurement in degrees. For example: LGLs timing is set to 6 degrees BTDC (for 90-96 octane fuel)

The need to be able to change the point at which the spark is created BTDC is important, as not all the fuel air mixture is burnt immediately. A faster revving engine, has less time to burn all of the mixture before the piston reaches top dead centre (TDC). Conversely a slower revving engine has more time to burn everything before TDC is reached. Both scenarios have their own issues. We won’t go into them, but they’re both suboptimal for engine longevity.

So, for optimal engine performance, the timing of the spark needs to be advanced or retarded in relation to the speed of the engine…. meaning the car needs a mechanism to do this.

This is achieved in 2 ways… with the counterweights in the bottom of the distributor (a black art in its own right) and a vacuum advance.

The vacuum advance is integral to the distributor body and takes a vacuum feed from the carburettor. The higher the air flow through the carburettor (higher revs) the higher the vacuum created. This is directly proportional (or should be) to the advancement / retardation of the timing…. thus the spark and combustion commences at the correct position BTDC no matter what the speed of the engine happens to be. Lesson ends….

The modern replacement to the D25 Lucas distributor I installed when I put the engine back together, meant I couldn’t reuse the copper vacuum pipe. The original copper pipe screws into the carb at one end and the distributor at the other…

The modern distributor has a push fit connector which meant the copper pipe was redundant. Instead I had to use a plastic replacement designed for an MG with a push on grommet each end. It did the job but I wasn’t all that aesthetic.

Recently I’d noticed the plastic pipe had come into contact with the exhaust manifold and had started to melt. As the whole idea of the pipe is to provide a good vacuum, having it melt wasn’t going to help things…. time to find either a better route or a better solution. The second option is why you’re reading this…

I never discarded the original copper pipe as they are almost irreplaceable so I used that as a starting point. I had to consider that if I ever get round to restoring the original Lucas distributor, I’d need the original copper pipe. Anything I do in terms of modification had to be reversible. On on…

LwkSbCFlSQCMi84pPTsAqw
Carb end of things with the (nasty) rubber vacuum pipe

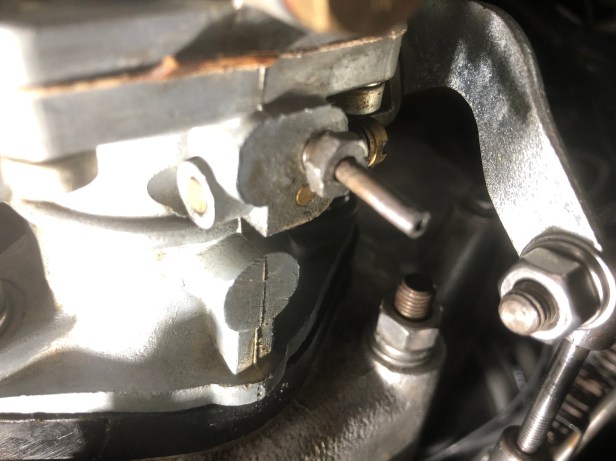

1zBkIzIQTIie7f+w2ypjLA
Small piece of the original vacuum pipe was used to provide a spigot to accommodate the plastic replacement. I’ll need the nut and olive off this piece.



M6QyfHleSTyu1kzm13gTYw
Nut and olive



BGoVuSN2R3mCjWcth2x+1Q
This is the other end of the old vacuum pipe where it screws into the vacuum advance unit. The advance unit I have only has a push fit spigot.

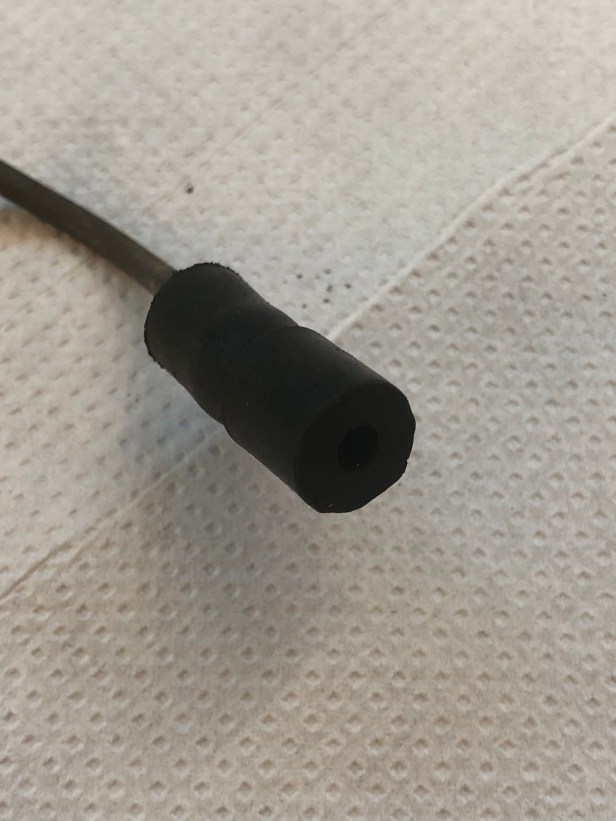

qQKmNYARRIWerv0dnp4bEw
Fortunately, a push fit grommet fits neatly over the end pipe and matches the advance unit perfectly



KgpW7%bvSi+pSol9TQSnDg
The olive needs to be heated up to pull it off the end of the home made spigot



Some time later….

jzNVtGiVT0mn6itAkiMLig
The oringal pipe is cleaned up (these are factory bends, not mine)

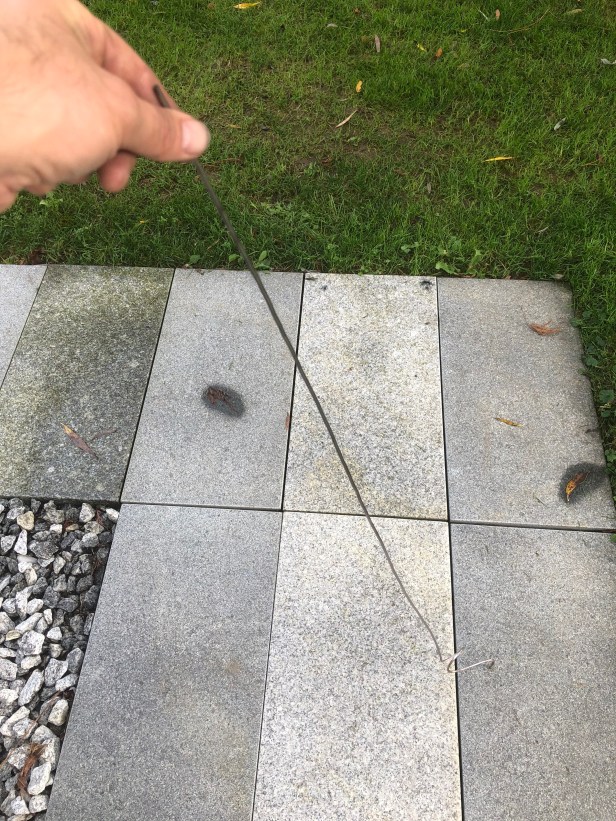

Trn7zz19R6WY+QjFGq%QFQ
Pipe is also straightened. It was in a sorry state before.

Even more time later… and after about a hundred offering ups to the engine bay, I had a new pipe that connected to the advance unit and the carburettor perfectly, whilst avoiding any clashes and opportunities to rub.

YAOJ2F1rTsCfA5Hfbsyp1g
For the bends I used the handle on a breaker bar as a mandrel



H8bVyDMHRTiLlTFiKjsmDg
Finished product

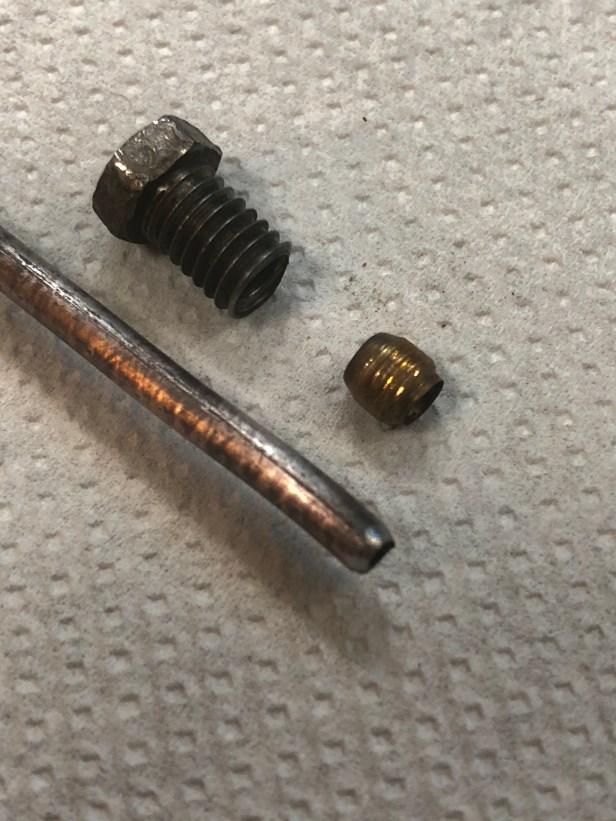

wFx59mxHR0aoRQYkr3qJHQ
The carb end of the pipe has a shoulder filed onto it so the olive slips on easily

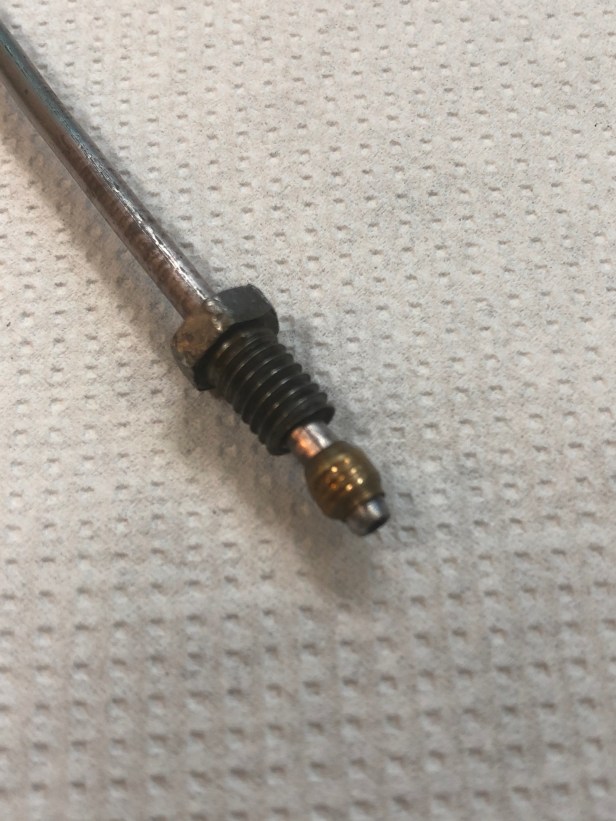

ymH0puz2RLSoM4%2Wn0uyg
Nut and olive reunited with the original pipe

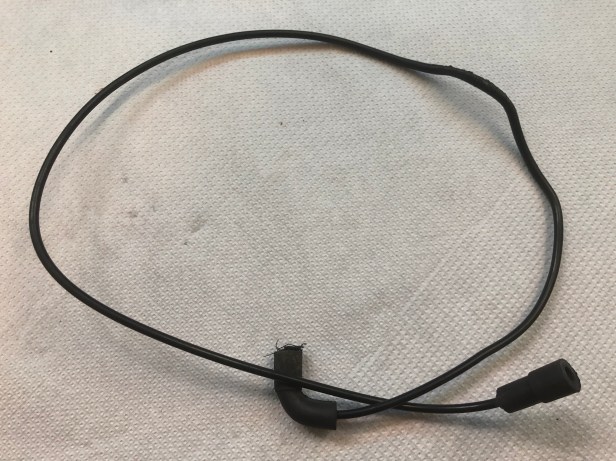

R4gSkVgoTXWMJ2OR1vLFQw
Bin or spares?… Spares



fullsizeoutput_a40
As the pipe is fixed to the bulkhead, I needed a helix in the pipe to compensate for engine movement



fullsizeoutput_a3f
This is the vacuum end of things. (sorry not a very good shot) The factory made helix allows for the distributor to be rotated when setting the timing but will help with allowing it to flex now it’s fixed to the bulkhead

…. so that’s why a vacuum advance is important on old school, “suck, squash, bang, blow” engines. Interestingly, a drag racing car needs no advance unit. It’s set to only run either at idle or with throttle wide open….
