Now the engine and gearbox are out, the next step it to remove the axles and springs. For the springs it’s a one way ticket to the recycling centre but for the axles, this is the start of a rebuild. More on that later.

img_0522

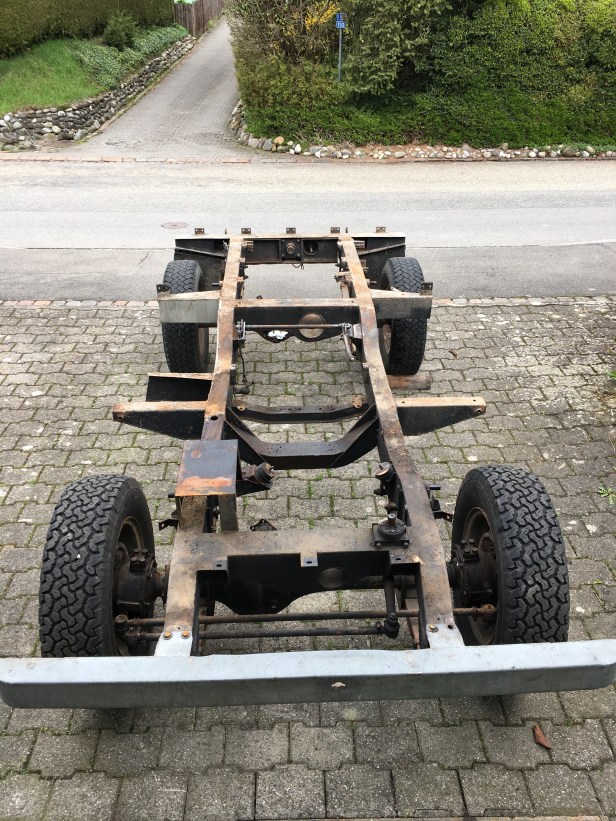

This is where we left off with the engine and gearbox removal
img_0560

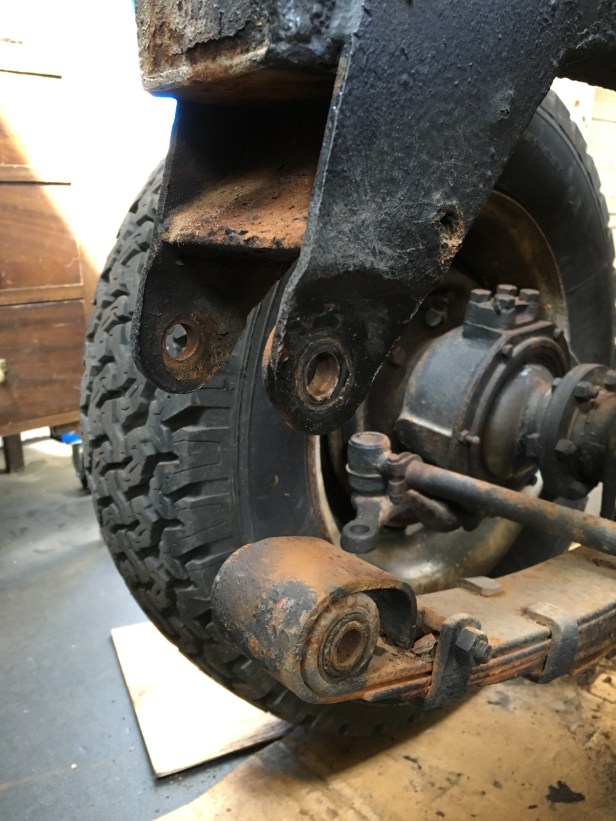

Off we go then. Front chassis spring mount bolt came straight out
img_0559
… as did its counterpart on the other side
img_0565
The nut came off easily enough… the bolt didn’t
img_0566
The spring shackles were a bitch to get off. The bolts were all seized solid.
img_0567
A brief tickle with the eagle grinder and the front axle and springs off



Below: In my infinite wisdom, I thought the best approach for removing the rear axle was to buzz off the U bolts and remove the axle with the springs in-situ. But… there isn’t enough room between the underside of the chassis rail and the top of the spring to pass the brake drums through. What followed was another demonstration of the versatility of the  farm jack to open up the gap so I could drag the axle free.

img_0568

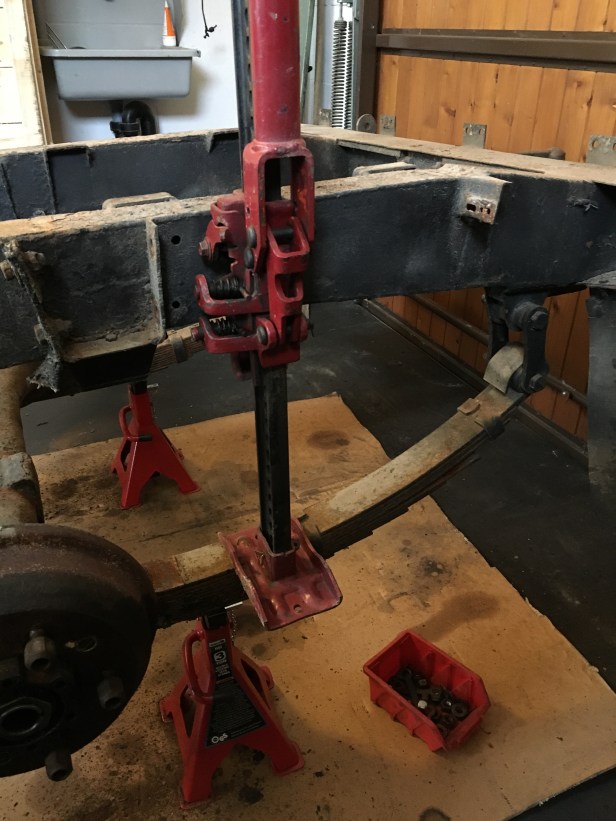

Highlight jack to the rescue again
img_0569
The last time LGL looked like this was on 12.05.66 when the vehicle was built at Lode Lane Solihull
img_0570

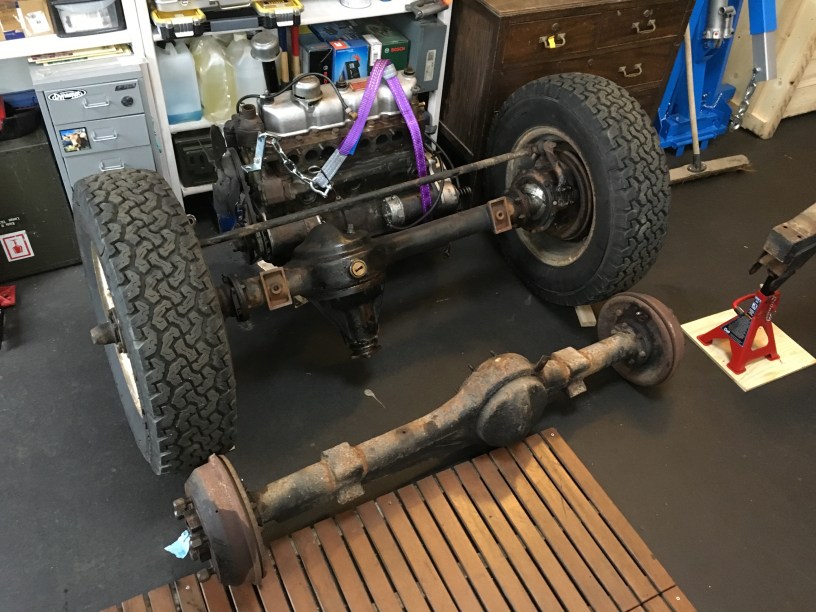

Front and rear axle, read for the next phase
