The final stage of the gearbox rebuild is inserting the selector shafts. These comprise of two rods which control engagement of 4WD high range and 4WD low range and are operated from the red and yellow levers in the cab.

img_2582
Output shaft from the transfer case
img_2586
4WD dog.

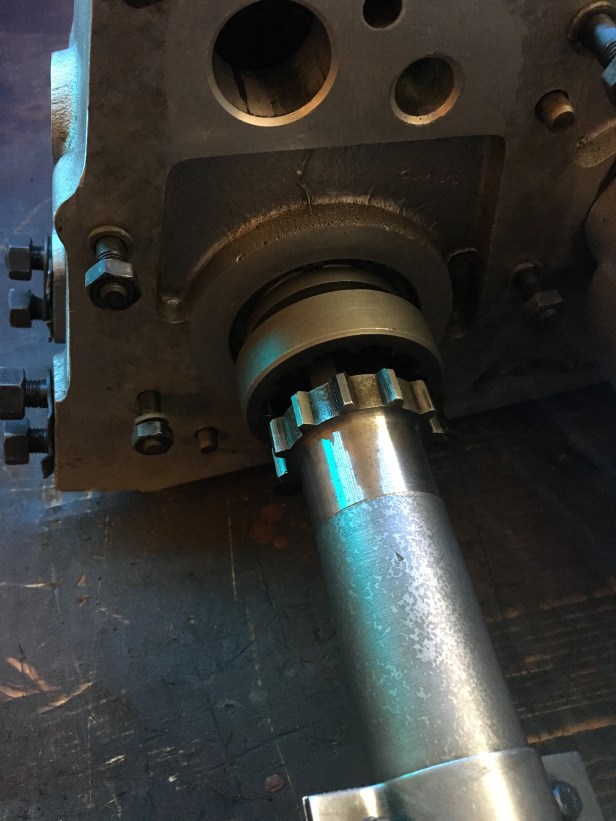

img_2588
Final front output is furnished via this shaft that fits over the transfer box output shaft. Only when the 4WD dog engages with the teeth seen here, is 4WD engaged. The rest of the time, the vehicle is in rear wheel  drive only
img_2589
The selector rod and fork in place

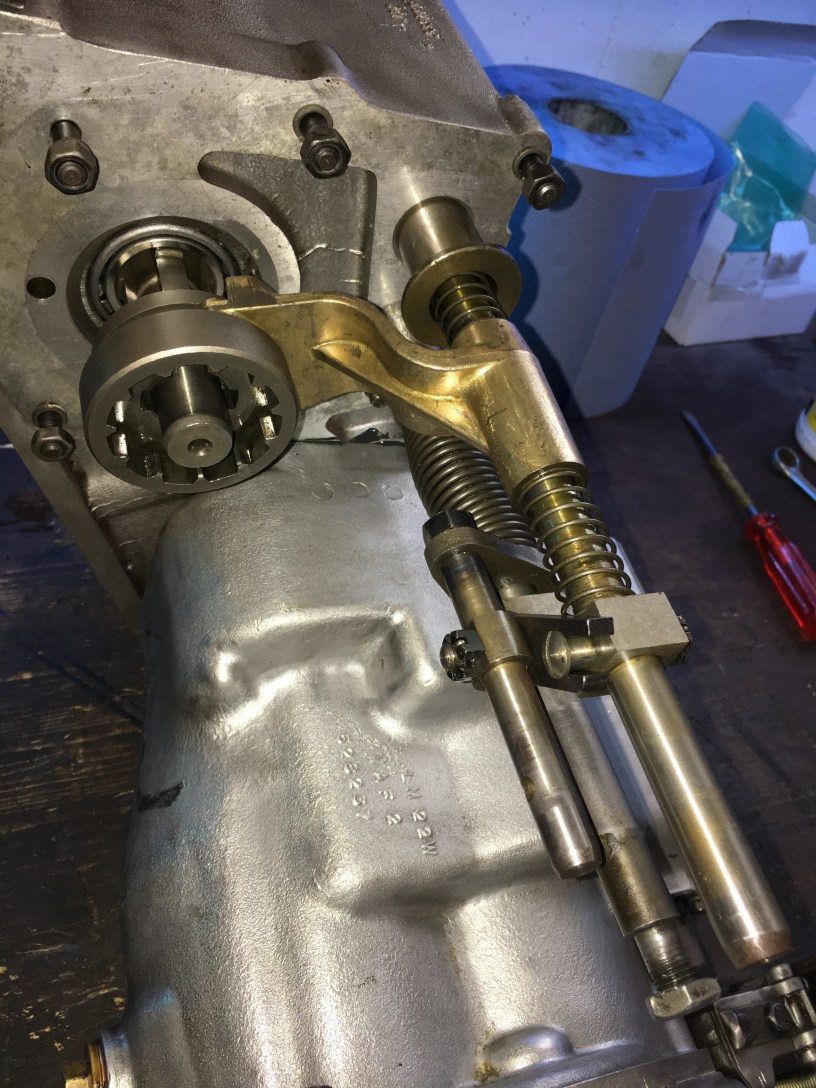

img_2600
High and Low range rod inserted. The selector fork for this one, moves the corresponding gear wheel in the transfer box, engaging low range and 4WD
img_2583
Output shaft casing with new bearing
img_2585
Bearing pressed in
img_2600
Shafts ready for the case. It took some “balance” to compress the powerful spring on the high, low rod

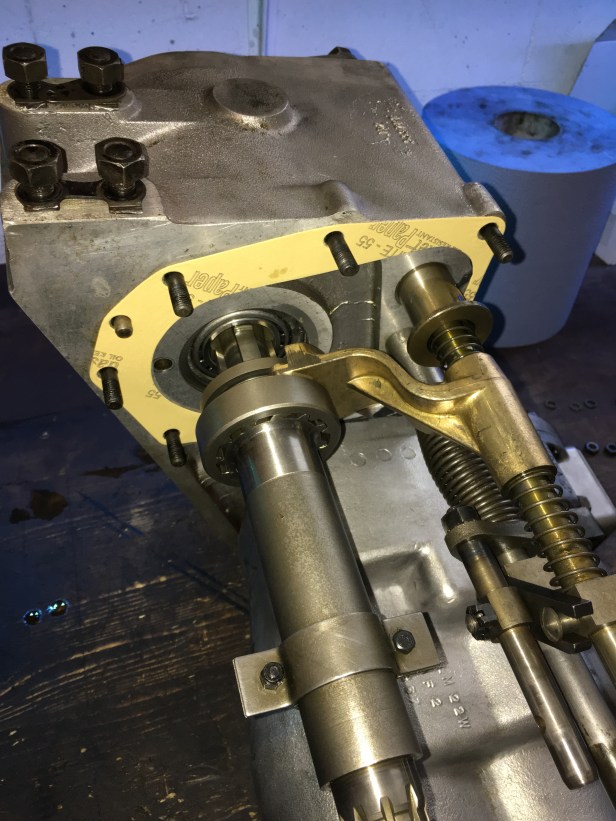

img_2601
Sealant and gasket in place

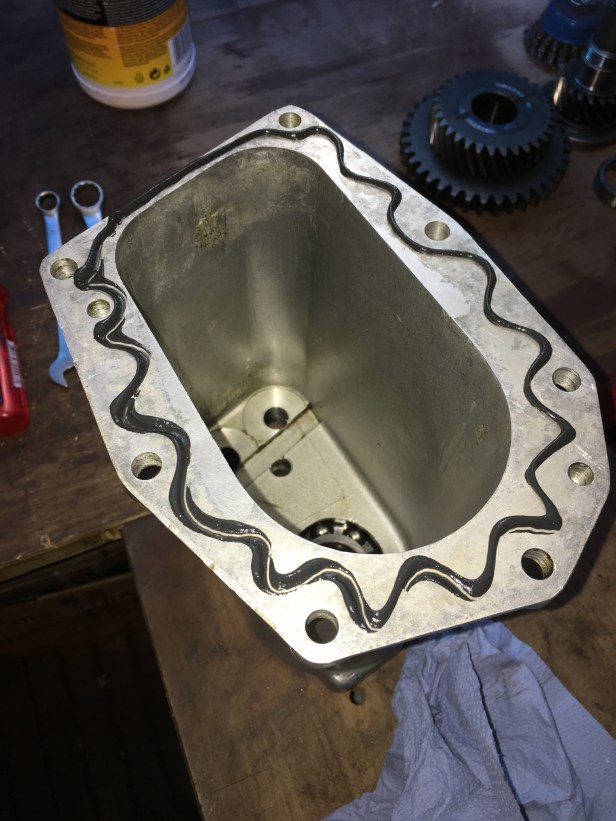

img_2602
Bead of sealant added to the clean face of the case
img_2603
… after some fiddling, everything passed through the correct aperture in the casing
img_2605
Sealant and gasket for output seal housing

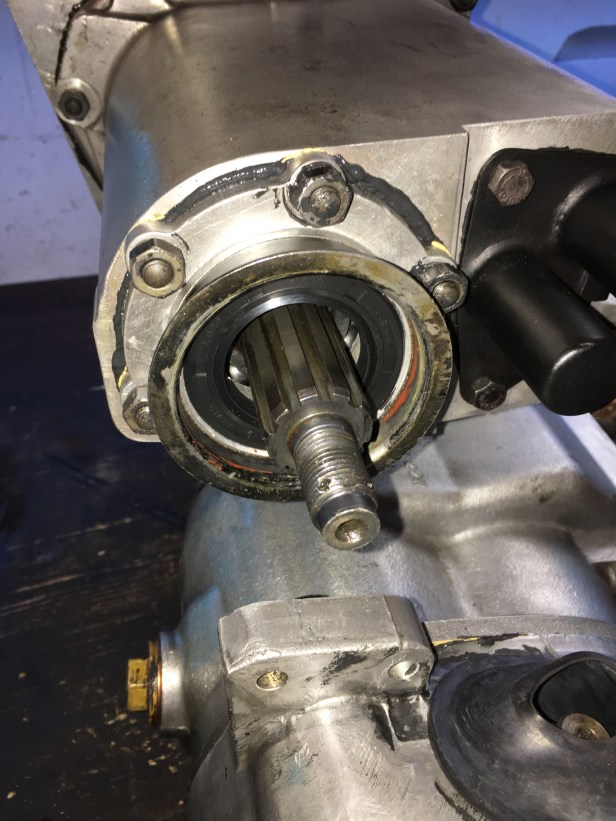

img_2607
Seal housing in place

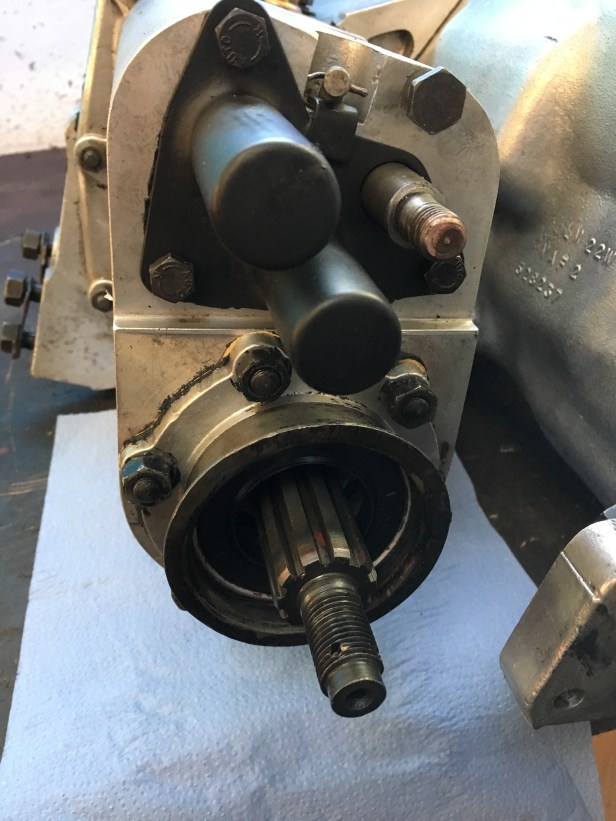

img_2611
Repainted rod cover in place
img_2612
Output flange pushed onto the shaft and new felt washer (backed up with some sealant) ready for thrust washer and castleated nut
img_2613
Castelated nut and new split pin secure the output flange to the output shaft
