I had hoped to crack on with the rear tub but other things got in the way and it was a bit late in the day to start anything serious when I got out to the garage.

I ordered a tank guard from Pangolin 4×4  in the US a few weeks ago, so decided to fit that instead…. 6 bolts and job done… turned out not to be the case.

It’s well manufactured piece of kit but not quite the right shape

IMG_3520
3/16″ galvanised steel fuel tank guard
IMG_3521

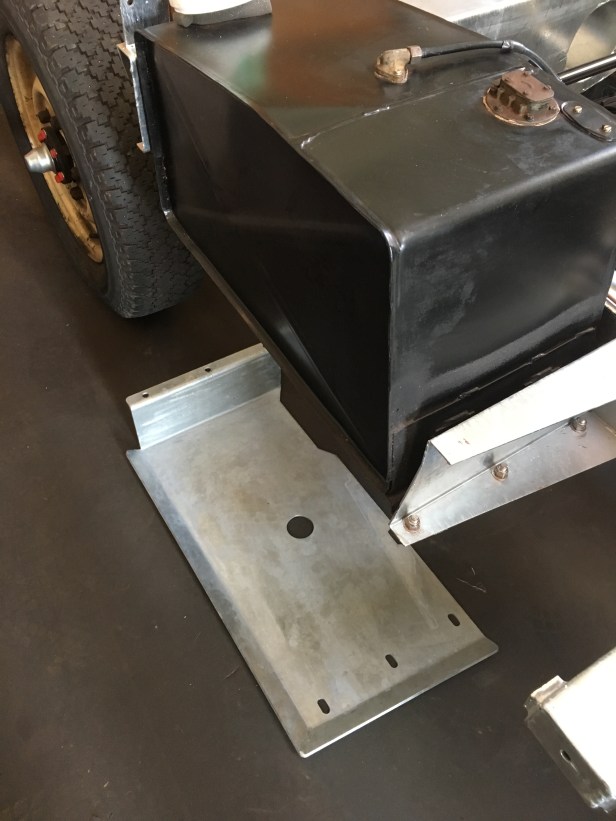

It locates directly under the fuel tank and acts a bash guard
IMG_3522

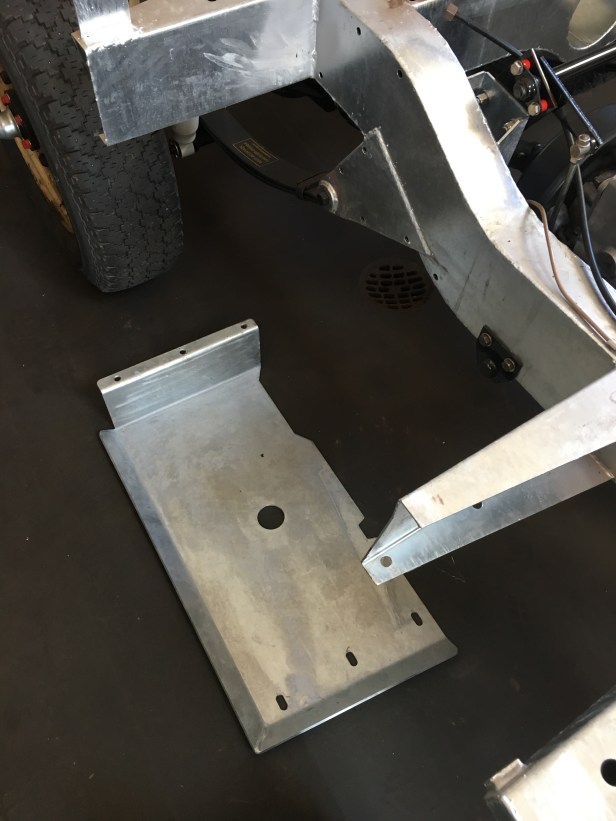

Fuel tank removed
IMG_3523

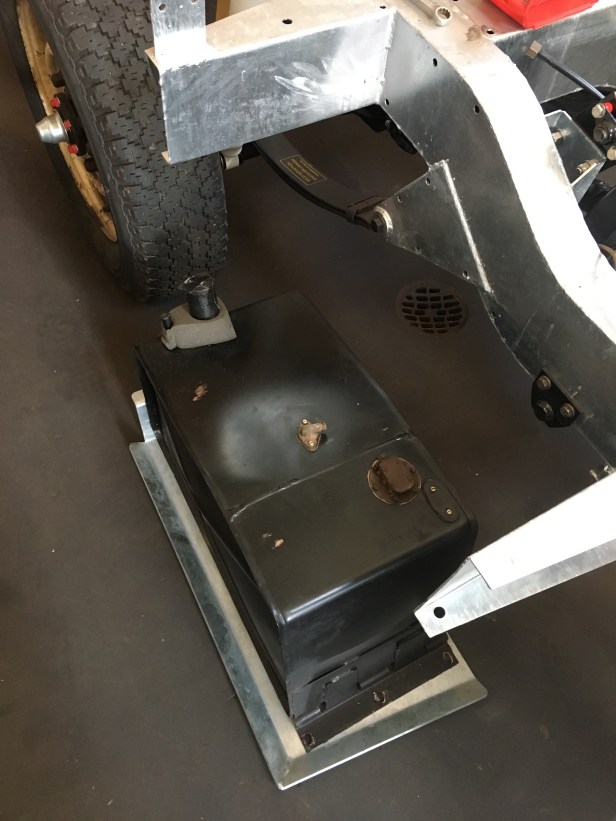

Fuel tank and tank guard. The fixing holes line up exactly…. but the tank is 1/4 full with fuel and with only two arms, quite hard to lift and bolt into position
IMG_3524
So…. to assist with the heavy lifting, I thought I could use the trolly jack… but it doesn’t reach high enough. I need to stand the jack on something so it reaches the underside of the tank…. I know… a jerry can. These things do more than just carry fuel.
IMG_3532
You can jack a car up on one of these… or help lift a fuel tank into place
IMG_3528
The cut out for the hand brake relay is not where it should be. The cut out will have to be extended
IMG_3530

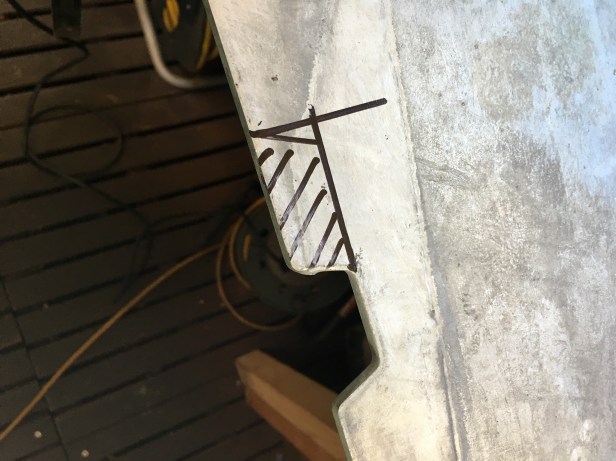

Ready to cut
fullsizeoutput_291
A few mins with a 1.5mm cutting disk and the design is improved immensely
IMG_3533
Now it fits…. But it scuffed the paint on the relay
IMG_3534
Maybe it’s just me but shouldn’t the drain plug of the tank and the aperture on the guard line up?
