With the steering box in place the throttle assembly can be installed. It was a little bit fiddly but it soon became obvious where everything was supposed to go.

IMG_4946

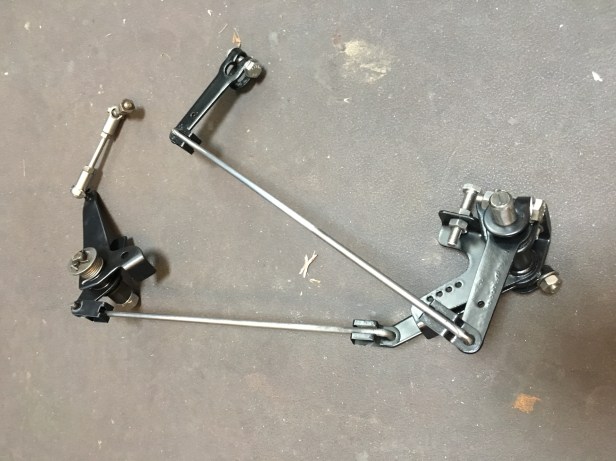

The throttle assembly has been boxed up in the basement since September last year when it was reconditioned
IMG_4949

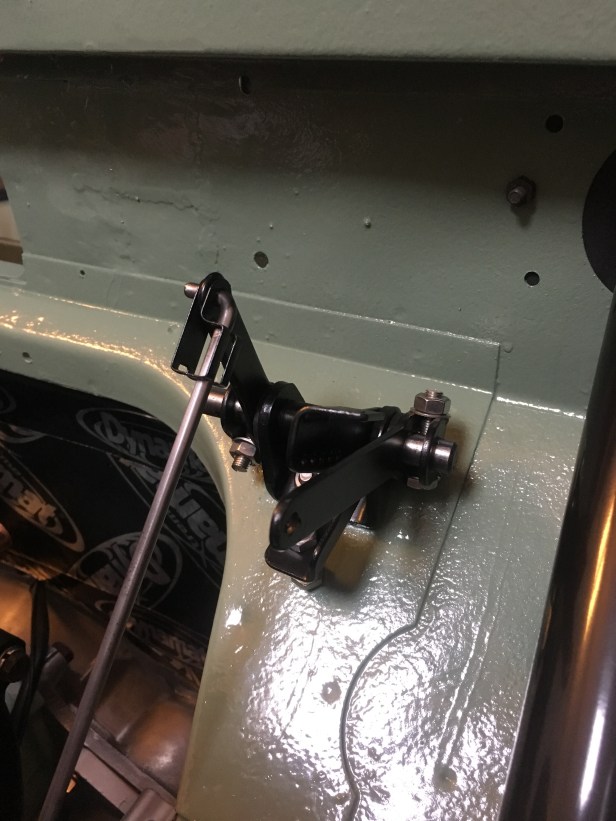

Top section in place, using new stainless UNF fixings
IMG_4951
Lower section and springs installed. I used a lighter weight spring for the “last 25 % of travel” (smaller spring) as the one I took off required for more muscle than I possess to get back on again!
IMG_4948
Finally… the push rod to the throttle body.

Next step was to set the correct pedal travel and pinch up all the crimp bolts…. and most importantly, set the throttle stop bolt in the foot well correctly.
